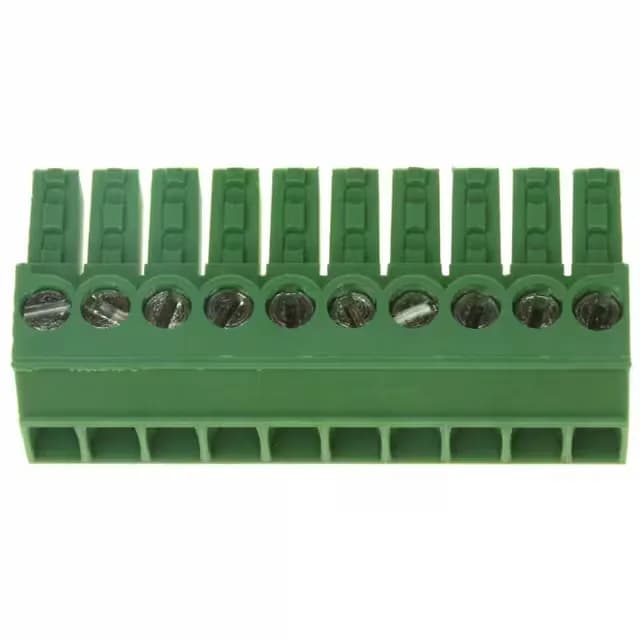

1-284506-0 TE Buchanan Plug 10 Pos 3.5mm 11A UL

MPN1-284506-0
Active

TE Connectivity AMP Connectors Buchanan 1-284506-0, plug female sockets, 10 positions, 3.50mm pitch, 11A UL, 300V UL, screw rising cage clamp, free hanging, side stacking, UL94 V-0, -40°C~110°C.

$11.4900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-284506-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-284506-0 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

1-284506-0 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesSide Stacking
Screw sizeM2
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions10
Positions per level10
Contact mating finishTin

Product details

What This 3.50mm Pitch Plug Handles

The 1-284506-0: This is a 10-position plug from the TE Buchanan series, a rising cage clamp terminal block with a 3.50mm pitch. The 11 A UL rating per position at 300 V UL covers moderate-power signal and control circuits in industrial panels and equipment. The side-stacking feature lets you gang multiple plugs side-by-side to build a wider terminal block assembly without a larger single connector — useful when you need more than 10 circuits on a DIN rail or panel entry.

Frequently asked questions

What is the current rating of 1-284506-0?

11 A per position at 300 V UL, per the UL rating. The 3.50mm pitch and tin-plated contacts support this current within the -40°C to 110°C operating range.

Is 1-284506-0 RoHS compliant?

Yes, ROHS3 compliant per the manufacturer.

What wire gauge does 1-284506-0 accept?

14-30 AWG (0.05-2 mm²) with a 5-6 mm strip length. The rising cage clamp grips both solid and stranded wire.

What is the torque specification for 1-284506-0?

0.31 Nm (2.7 Lb-In) for the M2 screw. Overtightening can damage the cage threads.

What are the alternatives to 1-284506-0 if it is out of stock?

1-2213934-1 is the closest functional second-source — same series, bulk package, active status, and matching specs. 1-2305909-1 is another peer candidate.
