TE Connectivity AMP Connectors 1-284510-0 — Header Plugs & Sockets

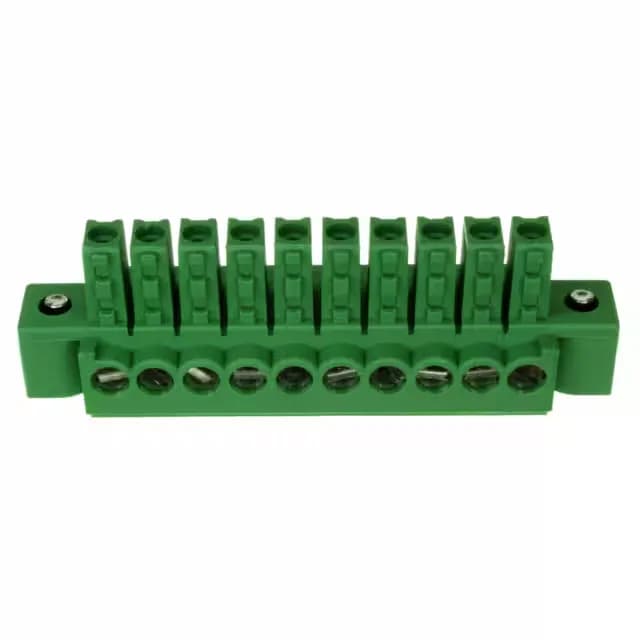

1-284510-0 TE Connectivity Buchanan 10-Position 3.5mm Plug

MPN1-284510-0
Active

TE Connectivity AMP Connectors Buchanan series, 1-284510-0, 10-position plug, female sockets, 0.138" (3.50mm) pitch, 11 A, 300 V, rising cage clamp termination, green housing, free-hanging.

$8.8400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-284510-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-284510-0 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

1-284510-0 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesMating Flange
Screw sizeM2
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions10
Positions per level10
Contact mating finishTin

Product details

Pitch and Position Count — First Fit Check

Housing and Environment

Green polyamide (PA66/Nylon 6/6) housing rated UL94 V-0, operating from -40°C to 110°C. Contact mating finish is tin, good for moderate cycle counts in dry indoor environments.

Same series, same form factor — the 8-position variant (284510-8) shares the 3.50mm pitch, 11 A rating, and rising cage clamp; the only difference is position count. If you need 12 positions on a slightly wider pitch, the 1-284511-2 uses 3.81mm pitch but otherwise identical specs — the board footprint changes, not the wire termination.

Frequently asked questions

What is the wire gauge range for 1-284510-0?

Accepts 14-30 AWG (0.05-2mm²) solid or stranded wire in the rising cage clamp.

What is the torque specification for the screw?

M2 screw, torque to 0.31 Nm (2.7 Lb-In).

Is 1-284510-0 RoHS compliant?

Yes, ROHS3 compliant.

What is the difference between 1-284510-0 and 1-284511-2?

The 1-284511-2 has 12 positions on a 3.81mm pitch; otherwise the same 11 A, 300 V, rising cage clamp, and housing material. The board footprint changes — 3.50mm vs 3.81mm pitch.
