TE Connectivity AMP Connectors 1-284511-2 — Header Plugs & Sockets

1-284511-2 TE Buchanan 12-Pos 3.81mm Plug – Active, RoHS

MPN1-284511-2
Active

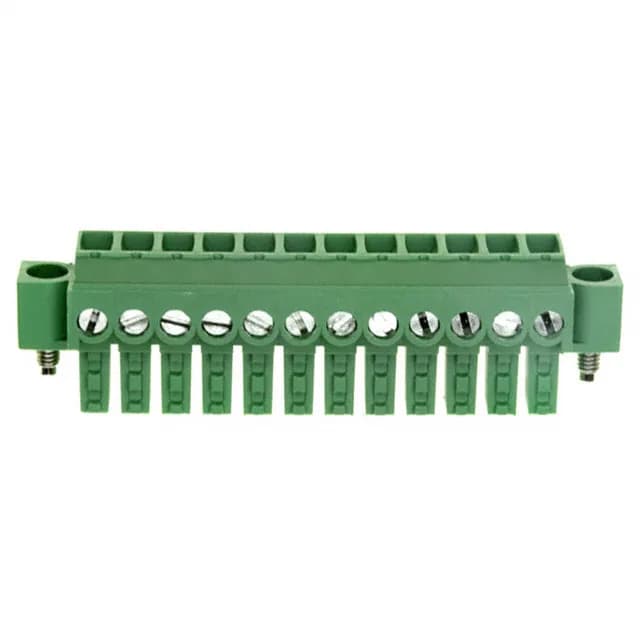

TE Connectivity AMP Connectors Buchanan series, 1-284511-2, Plug Female Sockets, 12 positions, 0.150" 3.81mm pitch, 11 A, 300 V, Screw - Rising Cage Clamp, Free Hanging, Bulk

$12.7500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-284511-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-284511-2 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

1-284511-2 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesMating Flange
Screw sizeM2
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions12
Positions per level12
Contact mating finishTin

Product details

12-position plug for 3.81mm headers

The 1-284511-2 is a 12-position plug from TE's Buchanan series, designed to mate with 3.81mm pitch headers. It carries a UL rating of 11 A at 300 V, with a screw rising cage clamp that accepts 14-30 AWG wire.

Wiring and termination specs

Termination uses a screw rising cage clamp with a specified torque of 0.31 Nm (2.7 Lb-In). The wire strip length is 5-6 mm, and the plug accepts solid or stranded wire from 14 AWG down to 30 AWG (0.05-2 mm²). The housing is polyamide (PA66) rated UL94 V-0, and the contact mating finish is tin.

Frequently asked questions

Where can I buy 1-284511-2?

The 1-284511-2 is an active TE Connectivity Buchanan part. No stock-holding claim is made here.

Is 1-284511-2 compatible with 3.81mm headers?

Yes, the 1-284511-2 is a plug with 0.150" (3.81mm) pitch, designed to mate with 3.81mm pin headers. Confirm the header's pin count and orientation (straight vs right-angle) before ordering.
