TE Connectivity AMP Connectors 1-284512-0 — Header Plugs & Sockets

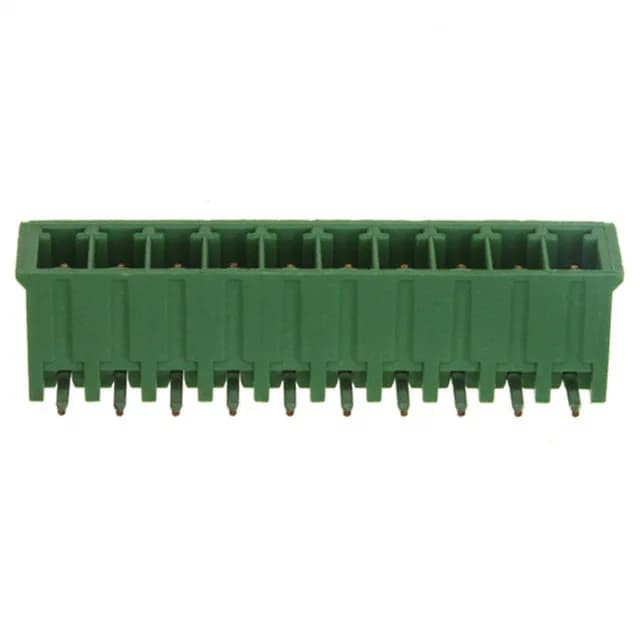

1-284512-0 TE Connectivity Buchanan Header, 10 Pos

MPN1-284512-0
Active

TE Connectivity AMP Connectors Buchanan series, Header, Male Pins, Shrouded (4 Side), 10 positions, 0.138" (3.50mm) pitch, 11 A, 300 V, right-angle through hole, tin contacts, UL94 V-0, green housing.

$3.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-284512-0 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL11 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.287\" (7.30mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)

All specifications

1-284512-0 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.134\" (3.40mm)
Positions10
Positions per level10
Contact mating finishTin

Product details

10-Position Right-Angle Header for Terminal Block Interfaces

The 1-284512-0 is a Buchanan series 10-position header with male pins in a shrouded (4 side) housing, designed for wire-to-board termination in industrial control and building automation equipment.

The 10 positions are arranged in a single level, so the header occupies a linear footprint 35 mm wide. Contact tail length is 0.134" (3.40 mm) — sufficient for a 1.6 mm thick PCB with through-hole solder termination. Rated 11 A at 300 V per UL, the header suits power distribution for I/O modules, relay banks, and small motor drives.

Active Production and Sourcing Position

It is ROHS3 compliant.

Frequently asked questions

What is the pitch and current rating of 1-284512-0?

The pitch is 0.138" (3.50 mm) and the current rating is 11 A per contact under UL conditions. The voltage rating is 300 V.

What is the mounting type and orientation for 1-284512-0?

Through-hole mounting with a right-angle (90°) orientation. The header sits parallel to the PCB, allowing the wire exit along the board edge.
