10-position vertical header for terminal block systems

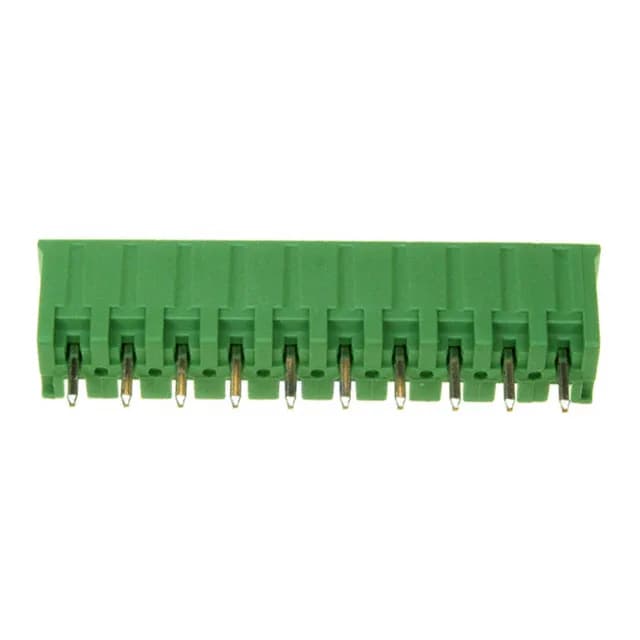

The 1-284517-0: A shrouded (4 side) header from the Buchanan series, this 10-position vertical through-hole part mates with the matching plug to create a wire-to-board terminal block interface. Rated 11 A per contact at 300 V, it handles moderate power and signal loads in a single-level layout. The tin-plated mating surface is suited for applications with occasional reconnection — think control cabinets, HVAC panels, or lighting distribution where the header stays mated for the equipment life.
Mounting and temperature range
Through-hole solder termination, vertical orientation — the header stands upright on the board, so the mating plug inserts straight down.
