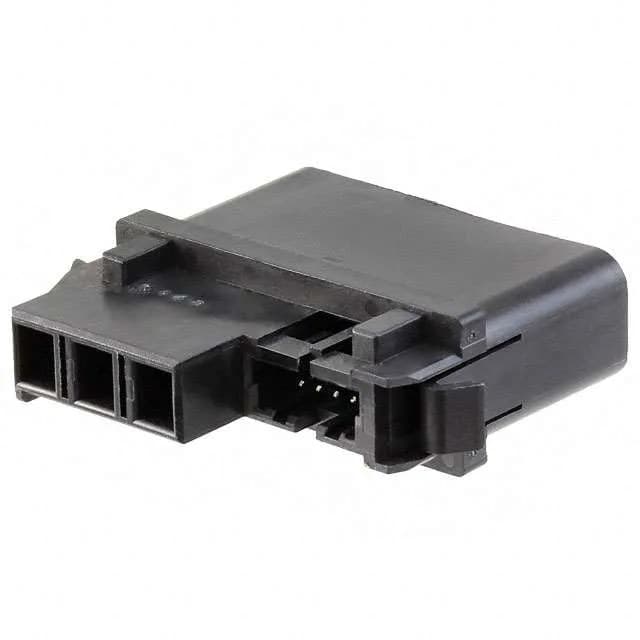

Mini-Drawer Header with Mixed Signal and Power Contacts
It is designed for wire-to-board power distribution in industrial equipment, telecom cabinets, and control panels where a compact hybrid interconnect saves space versus separate signal and power connectors.
Pinout: 5 Signal, 3 Power — Confirm the BOM Position Map
The contact layout is 5 signal and 3 power, with all 8 positions loaded. This pinout is the critical fit-check for a BOM line — verify that your harness assigns the three higher-current circuits to the power positions.
