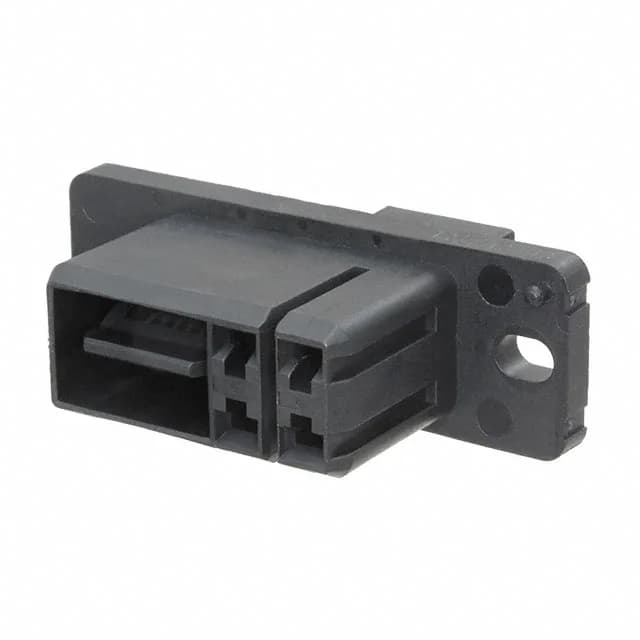

TE Mini CT 1-292240-2 Receptacle, 16 Position, Panel Mount

MPN1-292240-2
Active

TE Connectivity Mini CT series, Mini-Drawer receptacle, 16 positions (12 loaded), 2 rows, panel mount, black housing, ROHS3 compliant.

$3.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini CT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292240-2 specifications
ParameterValue
SeriesMini CT
MountingPanel Mount
Connector typeMini-Drawer
ColorBlack
PackageBulk
Rows2
Positions16
Contact layout, typical12 Signal, 4 Power

Product details

Panel-mount Mini-Drawer receptacle — 16-position housing with mixed signal/power layout

The TE Connectivity 1-292240-2 is a Mini CT series Mini-Drawer receptacle, designed for panel-mount applications where a secure, pull-to-release interconnect is needed. The housing carries 16 total positions across two rows, with 12 positions loaded — the contact layout is arranged as 12 signal circuits and 4 power circuits, so the BOM should reflect 12 terminals rather than 16. The black housing is ROHS3 compliant and ships in bulk packaging.

What mates with the 1-292240-2?

This Mini-Drawer receptacle mates with the corresponding Mini CT drawer-style plug (the male half in the series). The Mini-Drawer connector system uses a sliding latch mechanism — the receptacle mounts to the panel, and the plug half carries the wire harness. The 12 loaded signal positions and 4 power positions align with the plug's contact arrangement, so verify the mating half's cavity count matches the loaded layout before ordering.

Frequently asked questions

Where can I buy 1-292240-2?

The 1-292240-2 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your BOM quantity.

What is the pinout of 1-292240-2?

The 1-292240-2 has a contact layout of 12 signal positions and 4 power positions, with only 12 of the 16 total positions loaded. The housing is a 2-row Mini-Drawer receptacle.
