TE Connectivity AMP Connectors 1-292303-6 — USB / HDMI Cable Assemblies

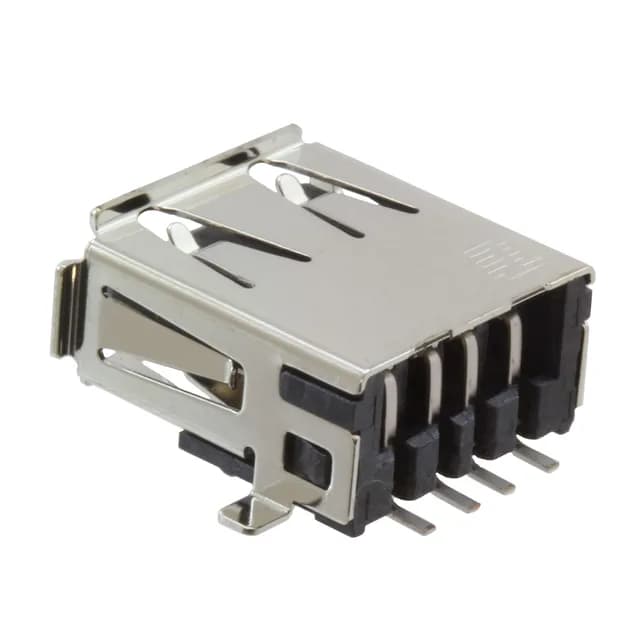

TE 1-292303-6 USB-A Receptacle, USB 2.0, SMD Right Angle

MPN1-292303-6
Active

TE Connectivity USB-A receptacle, USB 2.0, 4 contacts, 1A per contact, 30VAC, surface mount right-angle, shielded, 1500 mating cycles, UL94 V-0.

$2.4357Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-292303-6 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureHorizontal
Operating temperature-55°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

1-292303-6 additional specifications
ParameterValue
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold or Gold-Palladium
SpecificationsUSB 2.0
Number of ports1

Product details

TE 1-292303-6 USB-A Receptacle — USB 2.0, SMD Right-Angle, Shielded

It carries 4 contacts rated at 1A per contact at 30VAC, which is the standard power envelope for USB 2.0 — enough for charging and data sync on peripherals, but not the 1.5A or 3A of USB BC 1.2 or USB-C PD. The shielded shell — steel or stainless — handles EMI containment at the port, which matters for passing radiated emissions in consumer and industrial equipment enclosures.

Mounting and Assembly

Surface-mount termination with right-angle orientation. The shielded shell provides additional solder anchor points for mechanical retention.

Frequently asked questions

Where can I buy 1-292303-6 and how do I get a price?

Submit a request for quote (RFQ) for current pricing and availability — confirmed at quote time.

Is 1-292303-6 compatible with USB 3.0?

No. The 1-292303-6 is specified as USB 2.0 only. It will physically mate with a USB 3.0 plug, but the data rate is limited to 480 Mbps (USB 2.0 Hi-Speed). For USB 3.0 SuperSpeed (5 Gbps), a different connector with additional contacts is required.

What is the mating cycle rating for 1-292303-6?

Rated for 1500 mating cycles. This meets the USB-IF standard for standard USB ports and indicates the connector is suitable for applications where the port sees regular plug/unplug over its service life.
