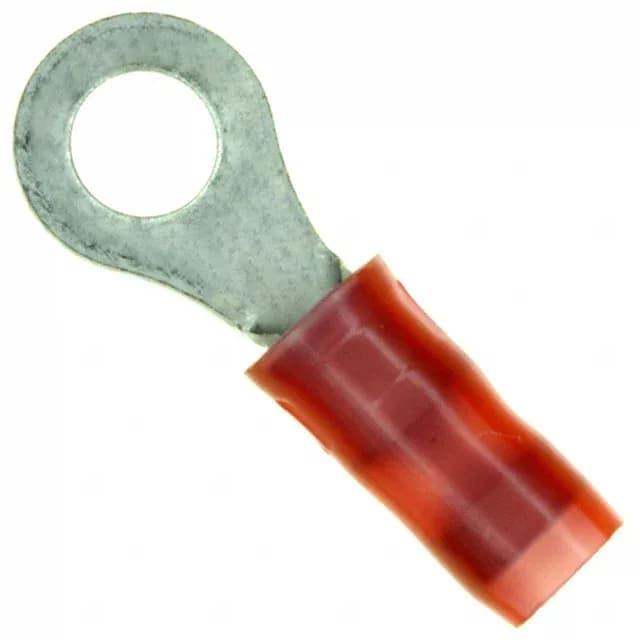

TE Connectivity AMP Connectors PIDG ring terminal, order code 1-320551-3, circular, 20 AWG, #8 stud, 0.031" (0.79mm) thickness, tin-plated copper contact, insulated, free hanging (in-line), crimp termination.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 20 AWG |
| Color | Red, Red Stripe |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.906\" (23.01mm) |
| Insulation diameter | 0.046\" ~ 0.110\" (1.17mm ~ 2.79mm) |
The 1-320551-3 is a circular ring terminal in TE's PIDG series, terminated by crimp and rated for 20 AWG wire with a #8 stud size. The terminal is insulated with polyamide (nylon), carries a tin-plated copper contact, and has an overall length of 0.906" (23.01mm).
