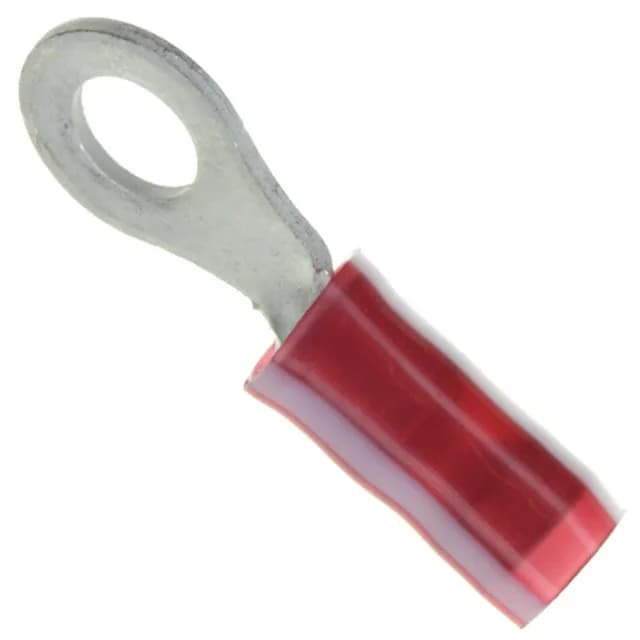

TE Connectivity AMP Connectors PIDG ring terminal, order code 1-320551-8, 18 AWG, #8 stud, circular terminal, tin-plated copper contact, insulated, crimp termination, free hanging in-line.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18 AWG |
| Color | Red, White Stripe |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.906\" (23.01mm) |
| Insulation diameter | 0.056\" ~ 0.110\" (1.42mm ~ 2.79mm) |
The 1-320551-8 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, designed for 18 AWG wire and a #8 stud size. The tin-plated copper contact is 0.031" thick, insulated with red/white-striped nylon, and terminates via crimp for free-hanging in-line mounting.
