TE Connectivity AMP Connectors 1-320765-0 — Ring Terminals

TE 1-320765-0 Solistrand Ring Terminal, 10-12 AWG, #1 Stud

MPN1-320765-0
Active

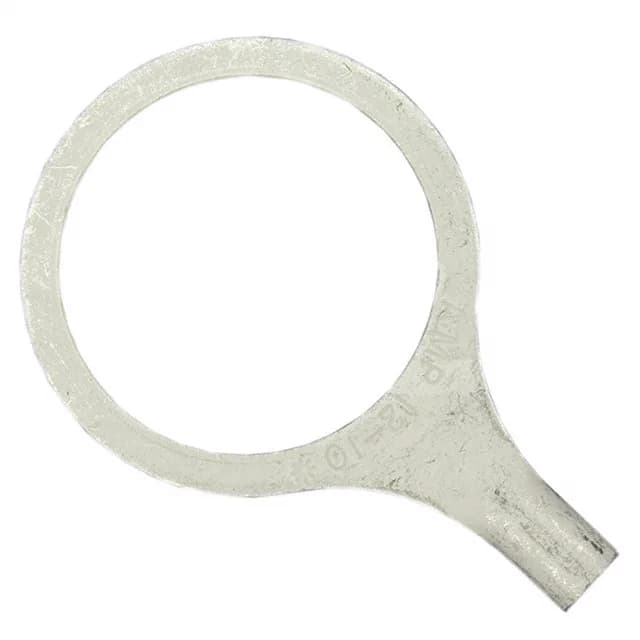

TE Connectivity AMP Connectors Solistrand ring terminal, order code 1-320765-0, 10-12 AWG, #1 stud, non-insulated, 0.039" (0.99mm) thick, tin-plated copper, crimp termination, free hanging, bulk.

$3.5800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-320765-0 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
Contact materialCopper
Width - outer edges1.250\" (31.75mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
Thickness0.039\" (0.99mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)1 Stud
Contact finishTin
Length - overall1.896\" (48.16mm)

Product details

Solistrand ring terminal, #1 stud

The 1-320765-0 is the #1 stud member of TE Connectivity's Solistrand ring terminal line, accepting 10-12 AWG wire with a non-insulated crimp barrel.

Stud size selection across the series

Within the Solistrand 10-12 AWG non-insulated ring terminal family, the 1-320765-0 uses a #1 stud. Siblings include the 1-320765-1 (7/8 stud) and the 320765 (3/4 stud) — all share the 0.039" thickness, 1.250" outer width, 1.896" overall length, and tin-plated copper construction. Match the stud size to the bolt diameter; the crimp and wire range are common across the group.

Frequently asked questions

Does 1-320765-0 drop into a panel wired for 1-320765-1?

No. The 1-320765-0 uses a #1 stud; the 1-320765-1 uses a 7/8 stud. The hole diameter differs — the terminals are not mechanically interchangeable without changing the stud.
