TE Connectivity AMP Connectors 1-321828-0 — Ring Terminals

TE Solistrand 1-321828-0 Ring Terminal, 12-14 AWG, #10 Stud

MPN1-321828-0
Active

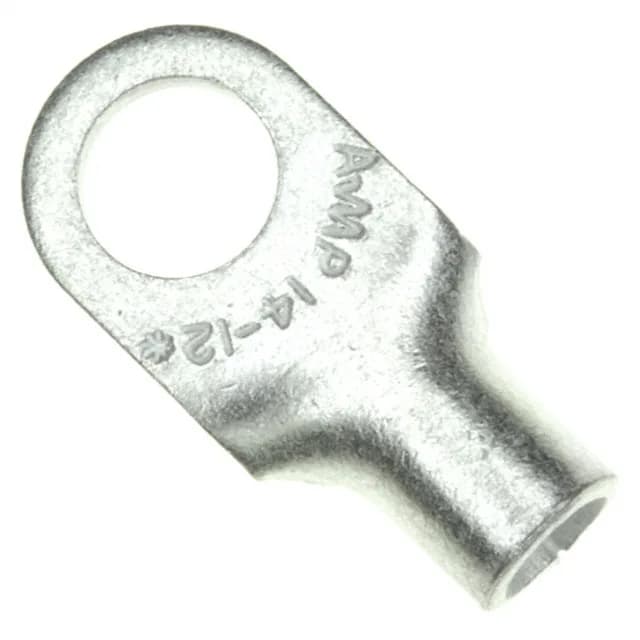

TE Connectivity AMP Connectors Solistrand ring terminal, order code 1-321828-0, 12-14 AWG, #10 stud, D-shaped, tin-plated copper, non-insulated, 0.038" (0.97mm) thick, brazed seam, serrated termination, crimp termination, free hanging.

$1.0400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-321828-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSolistrand
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-321828-0 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeD-Shaped
Wire gauge12-14 AWG
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.038\" (0.97mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.685\" (17.40mm)

Product details

Ring terminal for 12-14 AWG, #10 stud

The 1-321828-0 is a D-shaped ring terminal from TE's Solistrand series, sized for 12-14 AWG wire and a #10 stud. The terminal is non-insulated, tin-plated copper with a brazed seam and serrated termination — the serrations bite into the conductor strands during crimp, improving pull-out resistance.

Brazed seam and serrated grip

The barrel is 0.038" (0.97mm) thick copper with a brazed seam that closes the barrel wall, preventing the crimp from splitting the seam open under high compression. Overall length is 0.685" (17.40mm); the outer edge width is 0.312" (7.92mm) — dimensions that fit standard crimp tool nests for 12-14 AWG ring terminals.

Frequently asked questions

What does the brazed seam on the 1-321828-0 do?

The brazed seam closes the barrel wall so the crimp tool force does not split the seam open — it keeps the barrel round and the crimp consistent across the full conductor bundle.
