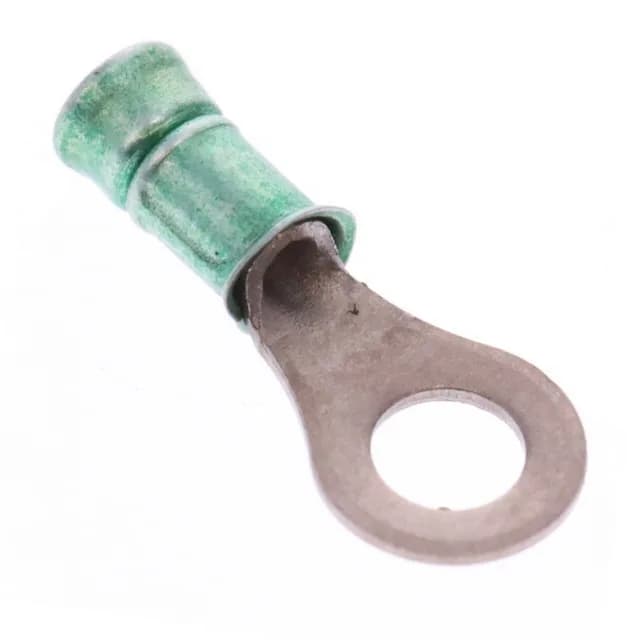

TE Connectivity Diamond Grip, Strato-Therm ring terminal, order code 1-321897-3, circular terminal, M4 stud, 18-22 AWG, insulated, green, 0.031" (0.79mm) thickness, Alumel contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Diamond Grip, Strato-Therm |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18-22 AWG |
| Color | Green |
| Contact material | Alumel |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Bulk |
| Features | High Temperature, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | M4 Stud |
| Length - overall | 0.796\" (20.22mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 1-321897-3 is a green insulated circular ring terminal from the Diamond Grip, Strato-Therm series, accepting 18-22 AWG wire with an M4 stud size. The Alumel contact material and serrated termination suit thermocouple and high-temperature wiring applications, with a 0.031" (0.79mm) contact thickness and a free-hanging crimp termination.
Orderable under the listed part number. Availability and pricing are confirmed at RFQ against the BOM quantity.
