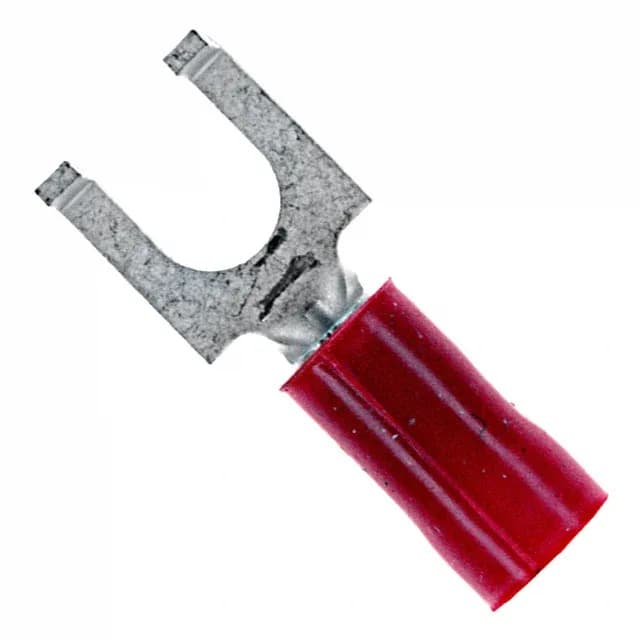

TE Connectivity Plasti-Grip spade terminal, order code 1-322249-0, red, 16-22 AWG, #8 stud, tin-plated copper contact, insulated, serrated termination, free hanging in-line, crimp termination.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.296\" (7.52mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 1-322249-0 is a red Plasti-Grip flanged spade terminal accepting 16-22 AWG wire with a #8 stud size. The tin-plated copper contact and serrated termination barrel provide a gas-tight crimp joint; the PVC insulation covers a wire insulation diameter of 0.105" to 0.140".
The 1-322249-0 is red, which indicates the wire gauge range (16-22 AWG) per the Plasti-Grip color-coding system.
It fits a #8 stud, with a tongue inside opening of 0.171".
