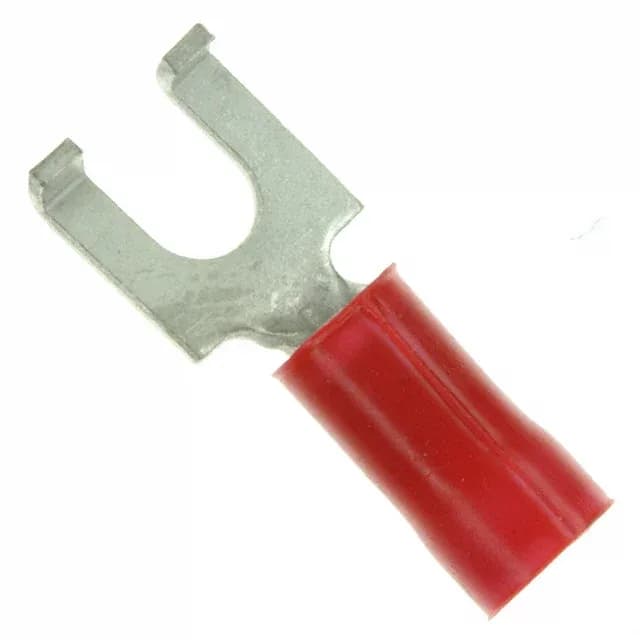

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 1-322249-1, 16-22 AWG, #6 stud, flanged, tin-plated copper, insulated red PVC, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.296\" (7.52mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 1-322249-1 is a red-insulated flanged spade terminal from TE Connectivity AMP Connectors' Plasti-Grip series, accepting 16-22 AWG wire and fitting a #6 stud. The tin-plated copper contact carries a serrated termination for grip, and the PVC insulation sleeves the crimp barrel with a 0.105" ~ 0.140" insulation diameter range.
The 1-322249-1 is ROHS3 Compliant per the manufacturer's listing.
