TE Connectivity AMP Connectors 1-327717-2 — Spade Terminals

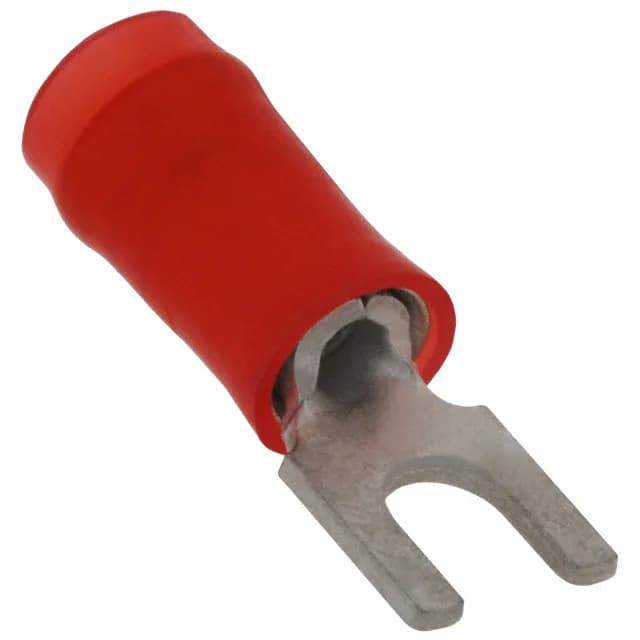

1-327717-2 TE PIDG Spade Terminal, #4 Stud, Tin, 16-22 AWG

MPN1-327717-2
Active

TE Connectivity AMP Connectors PIDG spade terminal, order code 1-327717-2, #4 stud, 16-22 AWG, tin-plated copper contact, insulated, crimp termination, free hanging, red.

$2.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-327717-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-327717-2 key specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.218\" (5.54mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

1-327717-2 additional specifications
ParameterValue
Stud (Tab size)4 Stud
Contact finishTin
Length - overall0.674\" (17.12mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
Length - termination0.404\" (10.26mm)
Tongue inside opening0.119\" (3.02mm)
Length - ring center to termination0.156\" (3.96mm)

Product details

PIDG spade terminal, #4 stud, 16-22 AWG

The 1-327717-2 is a PIDG-series insulated spade terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and terminating to a #4 stud. The tin-plated copper contact and serrated termination provide a gas-tight crimp joint; the red nylon insulation is rated for the full wire range with an insulation diameter of 0.105" to 0.140".

Wire range and insulation fit

The insulation grip accepts wire insulation from 0.105" to 0.140" diameter, matching the 16-22 AWG conductor range; the overall length is 0.674" and the tongue inside opening is 0.119".

Frequently asked questions

What color is the 1-327717-2 insulation?

Red.
