TE Connectivity AMP Connectors 1-331366-0 — Spade Terminals

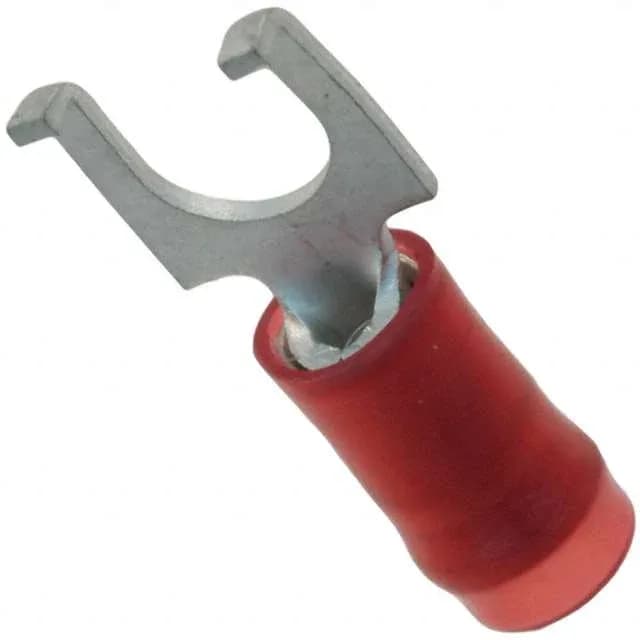

TE PIDG 1-331366-0 Spade Terminal, 16-22 AWG, #10 Stud, Red

MPN1-331366-0
Active

TE Connectivity AMP Connectors PIDG spade terminal, order code 1-331366-0, 16-22 AWG, #10 stud, flanged, tin-plated copper contact, insulated red nylon, free-hanging crimp termination, bulk.

$0.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-331366-0 key specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeFlanged
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.296\" (7.52mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

1-331366-0 additional specifications
ParameterValue
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.768\" (19.51mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
Length - termination0.404\" (10.26mm)
Tongue inside opening0.197\" (5.00mm)
Length - ring center to termination0.203\" (5.16mm)

Product details

PIDG spade terminal, #10 stud, 16-22 AWG

The 1-331366-0 is a red-insulated flanged spade terminal from the TE PIDG series, accepting 16-22 AWG wire and fitting a #10 stud. Tin-plated copper contact, crimp termination, serrated inner barrel for conductor grip, free-hanging inline mount.

Same-series packaging options

The 1-331366-0 ships in bulk; the same PIDG #10 stud terminal with identical 0.296" width, 0.404" termination length, and 0.105"-0.140" insulation diameter is also available as 1-331366-1 in Tape & Reel and Cut Tape — the terminal itself is the same, only the packaging changes.

Frequently asked questions

What is the color and wire range for 1-331366-0?

Red insulation, accepts 16-22 AWG wire.

What stud size does 1-331366-0 fit?

#10 stud, with a tongue inside opening of 0.197" (5.00 mm).
