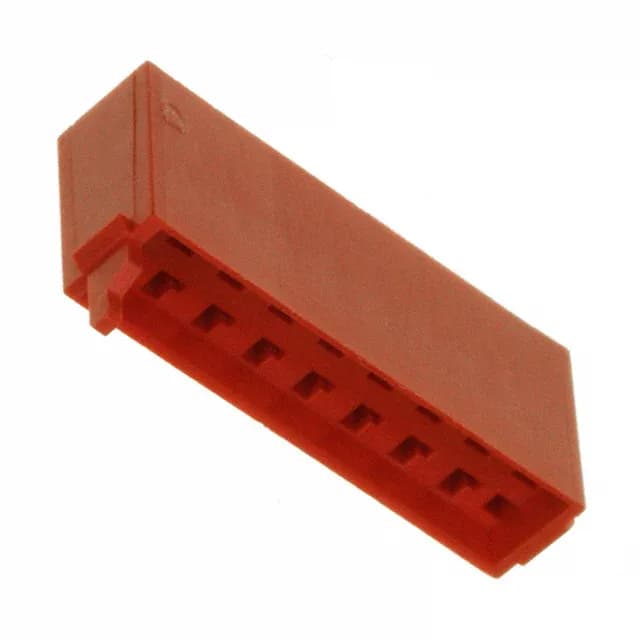

TE Connectivity Micro-MaTch series, 1-338095-6, 16-position 2-row plug housing, 0.100" (2.54mm) pitch, free-hanging crimp termination, red polyester housing, -40°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -40°C ~ 105°C |
| Color | Red |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 16 |
Contacts are not included.
The 1-1376477-6 is a different Micro-MaTch variant (6-position, single-row, 2.50mm pitch) and is not a functional replacement for this 16-position dual-row housing.
The 1-338095-6 accepts male pin crimp terminals designed for the Micro-MaTch series. The exact TE contact part number is not specified in this listing, so verify the terminal matches the 2.54mm pitch, 2-row layout, and the wire gauge range for your harness. Contacts are not included with this housing.
It is designed to mate with a 2-row, 16-position male pin header on the same pitch, making it suitable for wire-to-board connections in harness assemblies.
