TE AMPLIMITE HDP-20 1-338309-2

MPN1-338309-2
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 9 positions, 2 rows, DE-9 shell size, vertical through-hole solder termination, gold-plated phosphor bronze contacts, rated 6 A, board lock and grounding indents, black polyester glass-filled housing, UL94 V-0.

$8.5800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-338309-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-338309-2 key specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0

All specifications

1-338309-2 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions9

Product details

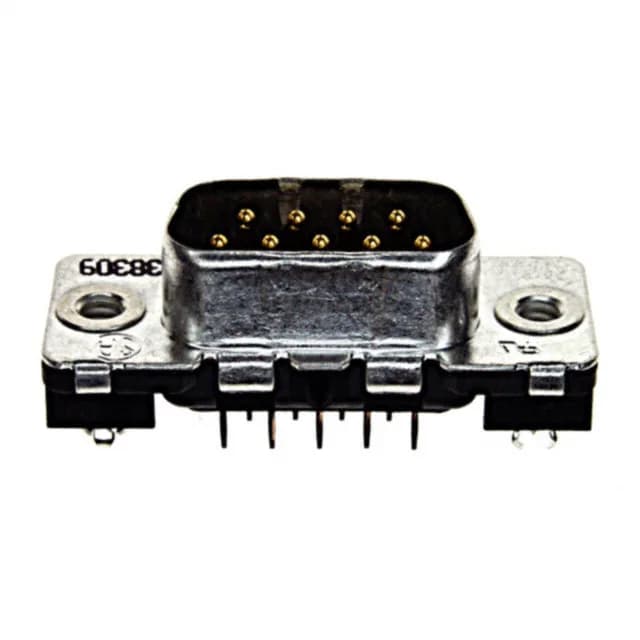

DE-9 Plug with Board Locks and Grounding Indents

The TE Connectivity 1-338309-2 is a 9-position D-Sub plug from the AMPLIMITE HDP-20 series, arranged in 2 rows on the standard DE-9 shell size. It terminates via solder cups to a through-hole PCB, with the vertical orientation keeping the cable exit perpendicular to the board.

Board Lock and Grounding Indents

Two board locks on the shell anchor the connector during wave solder and resist shear force from cable strain. The grounding indents in the steel shell mate with the receptacle face to bleed shield current before it reaches the signal pins — a detail that matters for EMC compliance in industrial or telecom enclosures.

The shell uses 4-40 threaded inserts for mating with standard D-Sub hardware.

Frequently asked questions

Does 1-338309-2 have board locks?

Yes, the 1-338309-2 includes board locks and grounding indents on the steel shell.

What is the difference between HDP-20 and HDP-22?

The HDP-20 series uses standard D-Sub shell sizes and contacts rated 6 A, while the HDP-22 series uses high-density shell sizes with smaller contacts. The 1-338309-2 is an HDP-20 part with the standard DE-9 layout.
