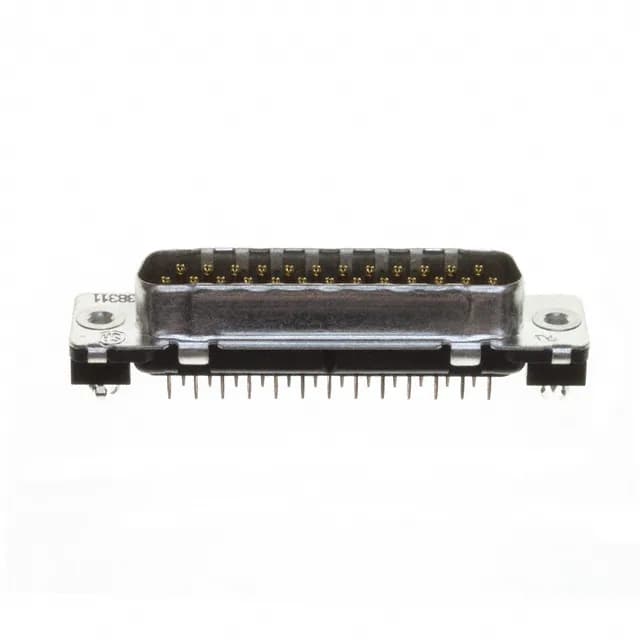

TE 1-338311-2 AMPLIMITE HDP-20 D-Sub Plug, 25-Position, 6A

MPN1-338311-2
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 25 positions, 2 rows, 6A, gold-plated phosphor bronze contacts, through-hole solder termination, board locks and grounding indents, UL94 V-0, -55°C to 105°C.

$14.6400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-338311-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-338311-2 key specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0

All specifications

1-338311-2 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions25

Product details

D-Sub Plug for Through-Hole PCB Mounting

It carries gold-plated phosphor bronze signal contacts rated at 6A per circuit, with a shell size of 3 (DB, B) layout.

Board Locks and Grounding Indents for PCB Retention and Shielding

The grounding indents in the shell mate with the receptacle's shell to bleed shield current before it reaches the signal pins, a standard feature for EMI management in D-sub interconnects. These features are confirmed on this exact part number.

The 1-338311-2 mates with a standard DB-25 receptacle housing (female socket side) of the same AMPLIMITE HDP-20 series. The flange features 4-40 threaded inserts for screw-lock mating with the receptacle's female screw-lock or jack-screw hardware. Termination is through-hole solder, with 2 rows of contacts on the standard 0.108-inch (2.74 mm) row spacing typical of DB-25 layouts.
