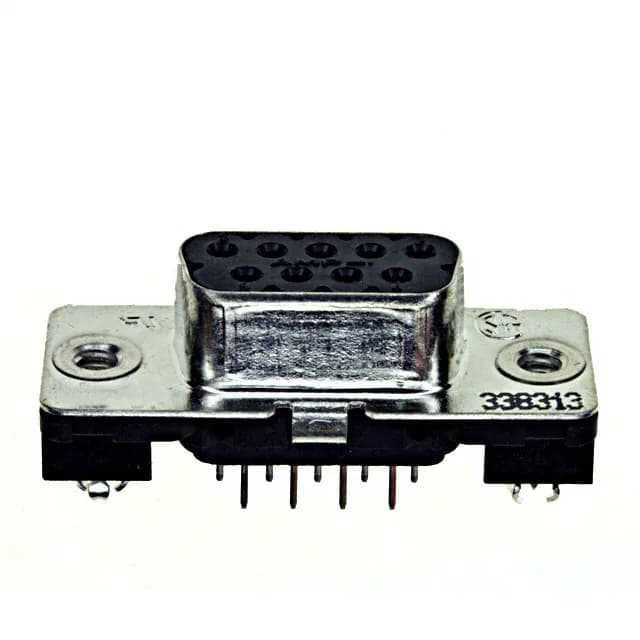

TE 1-338313-2 D-Sub Receptacle, 9 Pos, Gold, Board Lock

MPN 1-338313-2
Active

TE Connectivity AMPLIMITE HDP-20 D-sub receptacle, 9 positions, 2 rows, vertical through-hole solder, gold-plated phosphor bronze contacts, 6A, board locks, UL94 V-0, -55°C to 105°C.

$6.4900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-338313-2 key specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0

All specifications

1-338313-2 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions9

Product details

It carries gold-plated phosphor bronze contacts rated 6A per circuit, with a shell size DE (E) layout that mates with the standard 9-position D-sub plug.

Board Lock and Mounting Detail

The board lock feature consists of metal retention pins that snap into the PCB holes and hold the receptacle in place during wave or hand soldering. Once soldered, they add mechanical resistance to the pull force from the mating plug — useful in applications where the connector lives near a panel edge or sees periodic disconnect.

Temperature Range and Operating Environment

The steel shell with tin plating provides EMI shielding when mated with a matching D-sub plug that has grounding indents. Gold on the contacts handles repeated mating cycles better than tin — expect several hundred mates before wear-through, which matters for field-serviceable panels.
