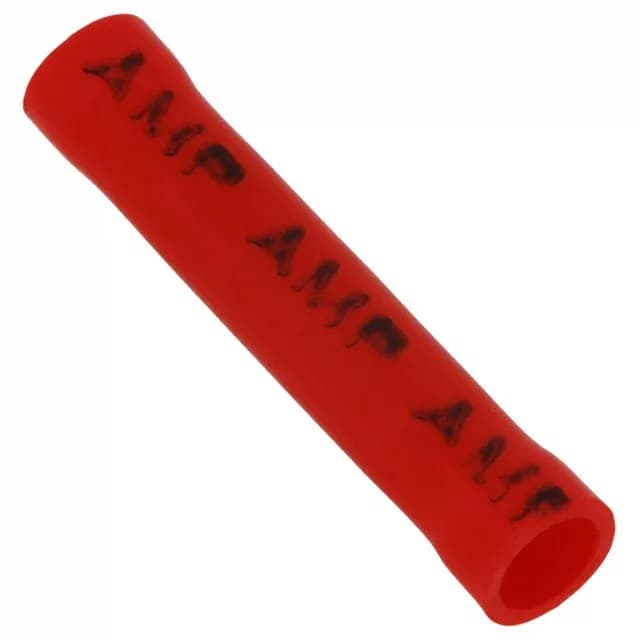

TE Connectivity AMP Connectors Plasti-Grip butt splice, order code 1-34070-1, 16-22 AWG, red, fully insulated, serrated mating area, 2 wire entries, crimp termination.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Terminal type | Butt Splice, Inline, Individual Openings |
| Wire gauge | 16-22 AWG |
| Number of wire entries | 2 |
| Color | Red |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Mating Area |
| Insulation | Fully Insulated |
| Termination | Crimp |
The 1-34070-1 is the red, 16-22 AWG member of TE Connectivity's Plasti-Grip butt splice line, a fully insulated inline splice with a serrated mating area for two wire entries. Crimp termination secures 16-22 AWG wire; the serrated mating area improves grip on the conductor strands during crimping.
