2-Position Plug Housing for Universal MATE-N-LOK

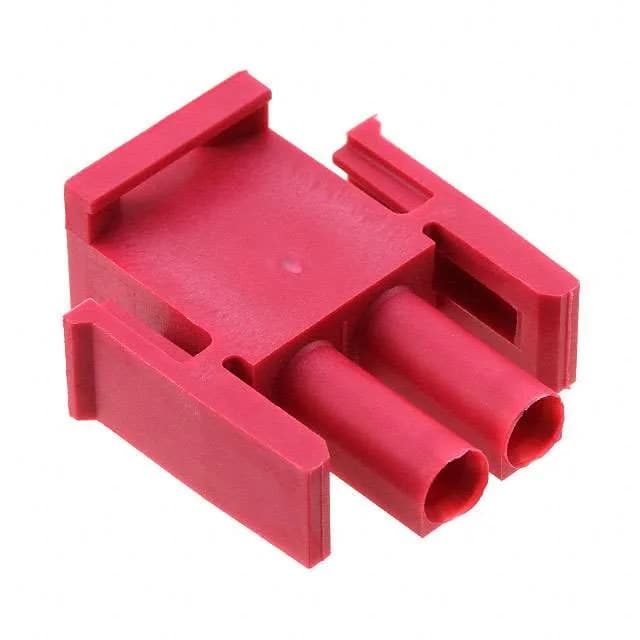

The TE Connectivity 1-350777-2 is a 2-position plug housing from the Universal MATE-N-LOK series, designed for free-hanging in-line wire-to-wire or wire-to-board interconnects. The red polyamide (nylon) housing carries a latch lock for positive retention and accepts either male or female crimp contacts — contacts are ordered separately.
Housing Only — Contacts Ordered Separately
The listing explicitly notes contacts are not included. The housing accepts both male and female crimp terminals from the Universal MATE-N-LOK family — the specific terminal part number depends on wire gauge and plating preference (tin vs. gold). The crimp termination and latch lock give a field-reliable connection without special tooling beyond a standard crimp press.
Mating and Fastening
The latch lock provides audible and tactile feedback when fully mated with the corresponding receptacle housing. The single-row, 2-position layout keeps the assembly compact for tight harness routing. No secondary lock or CPA is present on this basic housing — terminal retention relies on the crimp terminal's own lance engaging the housing cavity.
