TE Connectivity AMP Connectors 1-353293-9 — Panel-Mount & In-Line Circular

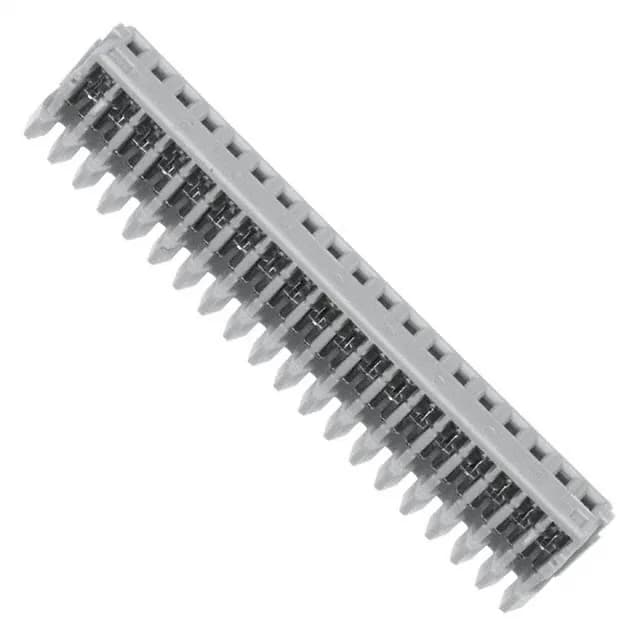

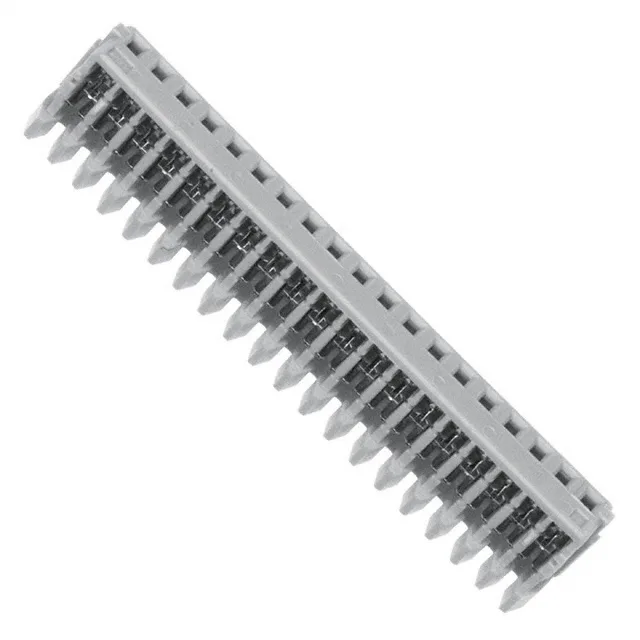

TE Mini CT 1-353293-9 Receptacle, 19 Pos, 1.50mm IDC

MPN1-353293-9
Active

TE Connectivity Mini CT receptacle, 1-353293-9, 19 positions, 1 row, 0.059" (1.50mm) pitch, IDC termination, 26-28 AWG, tin female socket, free hanging, gray, bulk.

$0.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini CT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-353293-9 specifications
ParameterValue
SeriesMini CT
Wire typeDiscrete
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorGray
Pitch0.059\" (1.50mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions19

Product details

The closed-end housing prevents wire insertion from the wrong side, which helps maintain assembly consistency on the line.

If your application sees repeated disconnect/reconnect in the field, tin frets and contact resistance drifts—gold would be the better call, but this part is tin only. The wire gauge window is tight: 26-28 AWG. If your harness uses 24 AWG or 30 AWG, this receptacle won't work; you'd need a different contact or a crimp-style version. The IDC termination is a production-speed play—strip, align, and press. No individual contact crimping, which saves labor on high-volume builds. But IDC is less forgiving of wire insulation thickness variation than a crimp barrel, so confirm your wire's OD falls within the slot geometry before committing the BOM line.

Frequently asked questions

Where can I buy 1-353293-9?

The 1-353293-9 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time—no stock-holding claim, no immediacy promise.

What is the pitch of the 1-353293-9 connector?

The pitch is 0.059" (1.50mm).

Does 1-353293-9 accept 28 AWG wire?

Yes, the 1-353293-9 is rated for 26-28 AWG discrete wire.

Is 1-353293-9 RoHS compliant?

Yes, it is ROHS3 compliant.
