What This Faceplate Covers

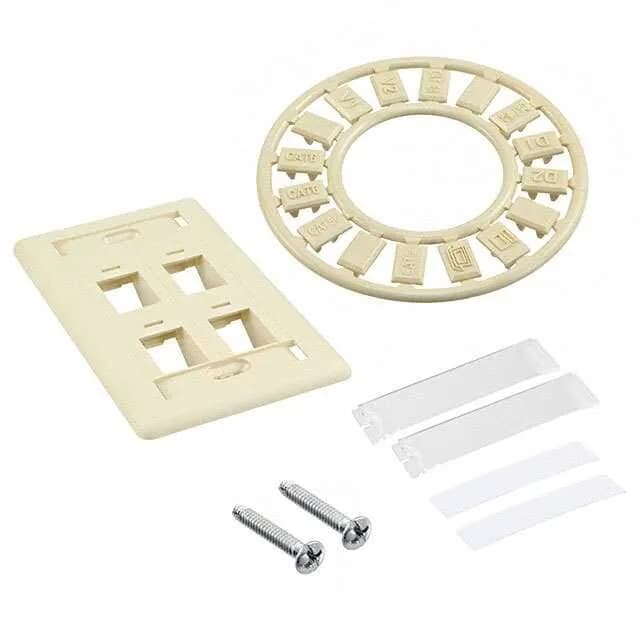

The TE Connectivity 1-406185-1 is a single-gang faceplate from the SL 110Connect series, designed to mount four keystone-style jacks or connectors in a standard wall box or surface-mount box. The Electric Ivory polycarbonate body matches common decorator wall-plate colors, and the angled/sloped port direction routes patch cables downward to manage bend radius and keep the front face clean. It ships with an icon wheel, label cover with labels, and mounting hardware — everything needed for a finished install.
Dimensions and Gang Fit
At 2.750" (69.85 mm) wide by 4.500" (114.30 mm) long, this faceplate covers a standard single-gang opening. The dimensions match the NEMA/ANSI cutout for a single-gang box — no adapter plate needed. The 4-port layout accepts any keystone jack that fits the SL 110Connect or MT-RJ Series footprint, including Cat5e, Cat6, and fiber optic inserts.
Compatible Connector Families
The faceplate is listed for use with 110 Connect, SL Series, and MT-RJ Series keystone jacks. That covers twisted-pair copper (110-style punchdown), SL-series modular jacks, and MT-RJ fiber optic adapters. The angled port direction helps maintain minimum bend radius for fiber patch cords — a detail that matters when the cable exits into a narrow raceway or cabinet.
