TE Connectivity AMP Connectors 1-406372-0 — Modular / RJ Connectors

TE 1-406372-0 SL 110Connect RJ45 Jack, Cat5e, Obsolete

MPN1-406372-0
Obsolete

TE Connectivity SL 110Connect modular jack, 8p8c (RJ45, Ethernet), Cat5e rated, IDC pressdown termination, gold-plated phosphor bronze contacts, violet polycarbonate housing, bulk pack.

$14.8500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1-406372-0 specifications
ParameterValue
SeriesSL 110Connect
Exterior type (Adapter end)Modular Jack 8p8c (RJ45, Ethernet)
Interior type (Adapter end)IDC, Pressdown, Punchdown Block
Operating temperature-40°C~70°C
Exterior housing colorViolet
Exterior contact materialPhosphor Bronze
Exterior housing materialPolycarbonate (PC)
StyleModular
PackageBulk
RatingsCat5e
Exterior contact finishGold
Exterior contact finish thickness50µin (1.27µm)

Product details

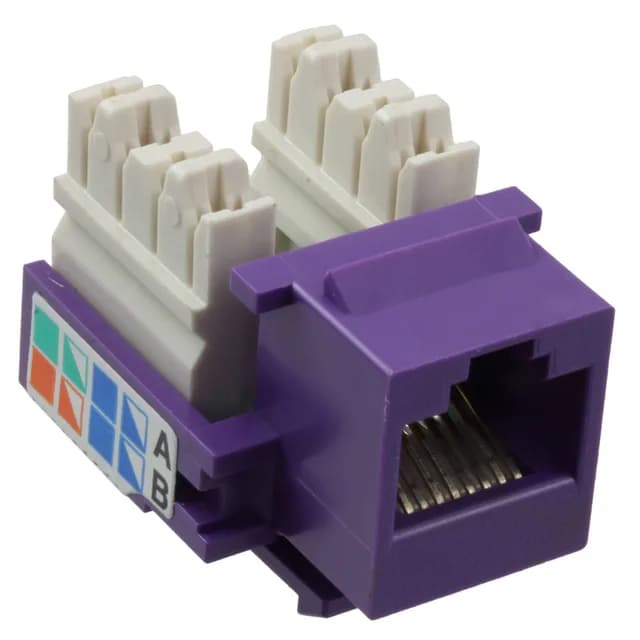

The TE Connectivity 1-406372-0 is a modular jack from the SL 110Connect series — an 8p8c (RJ45, Ethernet) keystone-style IDC termination module rated Cat5e. It terminates solid or stranded twisted-pair cable via a punch-down or press-down IDC block on the interior, presenting a standard RJ45 jack on the exterior for patch cords.

Cat5e rating means this jack is certified for 100 MHz channels — sufficient for 1000BASE-T Ethernet in structured cabling. It is not rated for Cat6 (250 MHz) or higher. The 8p8c (RJ45) interface mates with any standard RJ45 plug; the IDC interior accepts 22-26 AWG solid or stranded cable per the SL 110Connect termination tooling.

Frequently asked questions

What is the replacement for 1-406372-0?

No official replacement part number is recorded in the lifecycle data. A substitute would need to match the SL 110Connect footprint, Cat5e channel performance, and IDC termination style — confirm the footprint and termination method before substituting.
