TE Connectivity SMB plug, female socket, 50 Ohm, 4 GHz, 335 V, crimp/solder termination, nickel body, gold center contact, free-hanging, 1 port.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Socket |
| Fastening type | Snap-On |
| Voltage rating | 335 V |
| Frequency - max | 4 GHz |
| Cable group | RG-161, 179, 187 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Parameter | Value |
|---|---|

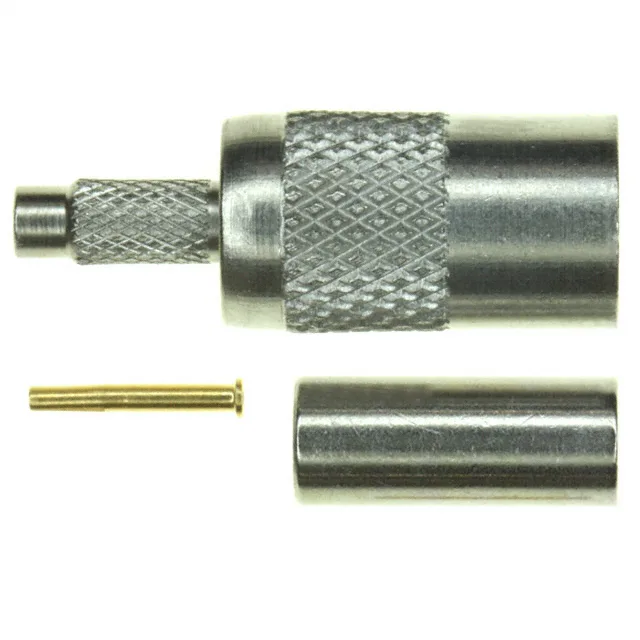

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.3dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp or Solder |
| Center contact plating | Gold |
The 1-413985-1: This plug terminates RG-161, RG-179, and RG-187 coaxial cables — the common 75-95 Ohm shielded types used in video and low-power RF runs. The shield is crimped (the ferrule compresses over the braid), and the center contact can be crimped or soldered.
TE Connectivity lists the 1-413985-1 as Obsolete. No official replacement part number is published by TE.
Yes, TE Connectivity lists the 1-413985-1 as Obsolete. There is no official replacement part number from TE.
The 1-413985-1 terminates RG-161, RG-179, and RG-187 coaxial cables.
