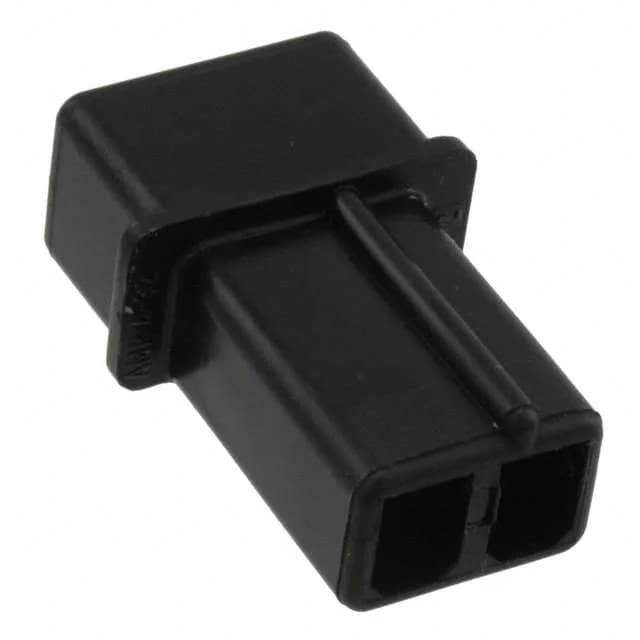

TE Connectivity Commercial MATE-N-LOK receptacle housing, 1-480319-9, 2 positions, 1 row, 5.08mm pitch, free hanging, friction lock, crimp termination, black nylon, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The correct terminal series is the Commercial MATE-N-LOK pin contact — order these separately as the housing ships without contacts. The crimp termination allows field assembly with standard tooling; the terminal locks into the housing cavity with an audible click. For a complete mated pair, pair this receptacle with the matching Commercial MATE-N-LOK plug housing (sold separately).
The 1-480319-9 accepts male pin crimp terminals from the Commercial MATE-N-LOK series. The contacts are not included with the housing and must be ordered separately.
Yes, the 1-480319-9 is ROHS3 compliant, meeting the latest EU restrictions on hazardous substances.
