TE Connectivity AMP Connectors 1-480699-1 — Connector Housings

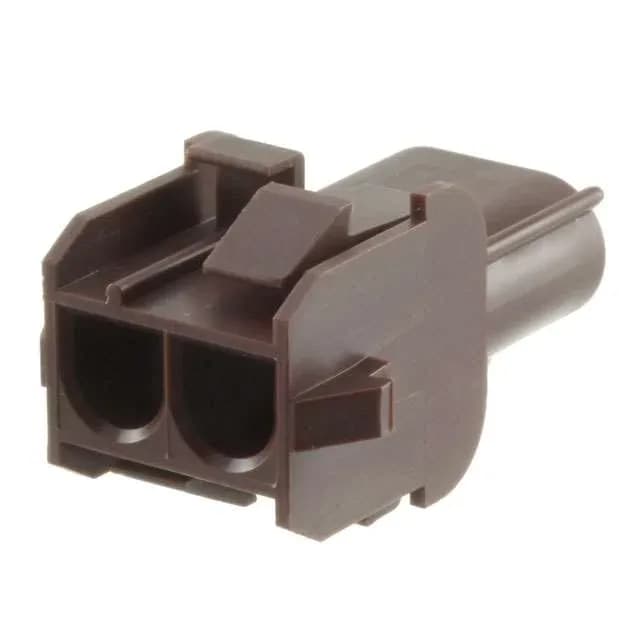

TE 1-480699-1 Universal MATE-N-LOK Receptacle Housing, 2 Pos

MPN1-480699-1
Active

TE Connectivity Universal MATE-N-LOK, receptacle housing, 2 positions, single row, panel mount snap-in, locking ramp, crimp termination, brown, contacts not included.

$0.3500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-480699-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-480699-1 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorBrown
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

The closest functional alternative is the same part in a different color — 1-480699-0 (natural) or 1-480699-8 (gray) — if color is not a constraint for your harness build.

This receptacle housing accepts crimp terminals — either male or female pins — that are ordered separately. The panel-mount snap-in feature holds the housing in place during wire dressing and mating. For the compatible contact part numbers, refer to the TE Universal MATE-N-LOK application tooling document; the housing itself does not dictate the wire gauge — that is set by the terminal selected.

Frequently asked questions

Does the 1-480699-1 come with contacts?

No — the 1-480699-1 is a housing only. The listing explicitly notes 'Contacts Not Included'. You must order the matching crimp terminals separately for the Universal MATE-N-LOK series.

What is the difference between 1-480699-1 and 1-480699-0?

The only difference is the housing color: 1-480699-1 is brown, 1-480699-0 is natural. Both are 2-position, single-row receptacles with the same panel-mount snap-in, locking ramp, and polyamide material. Choose by your harness color-coding scheme.
