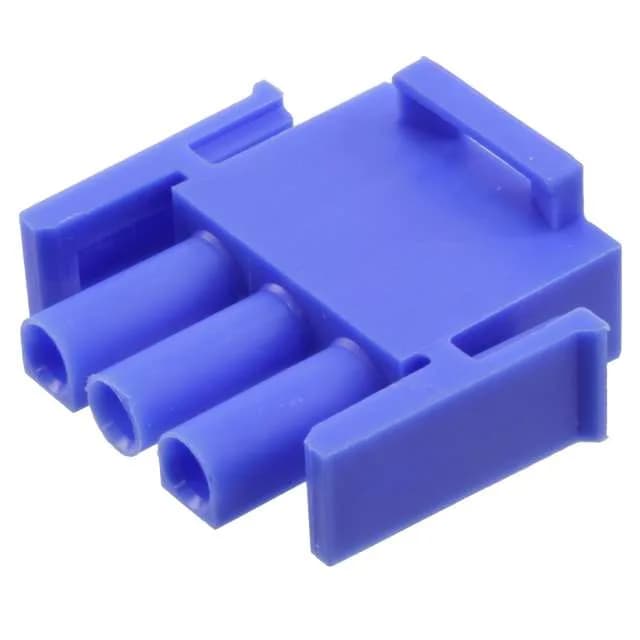

TE Connectivity Universal MATE-N-LOK, 3-position plug housing, blue, free-hanging (in-line), latch lock, crimp termination, -55°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Blue |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
It accepts male or female crimp contacts and secures the mate with a latch lock — the audible click confirms full engagement, which matters in high-vibration environments like automotive or industrial control panels.
The latch lock on a single-row, 3-position body keeps the pair mated without additional hardware, but the terminals themselves must be fully seated and the lock verified before the harness leaves the bench.
Submit an RFQ for your target quantity to get a firm quote.
The 1-480700-6 accepts male or female crimp contacts from the Universal MATE-N-LOK series. The exact terminal part number depends on wire gauge and plating preference — confirm the contact order code separately, as the housing ships with contacts not included.
Yes, the 1-480700-6 is ROHS3 Compliant per the manufacturer's listing.
