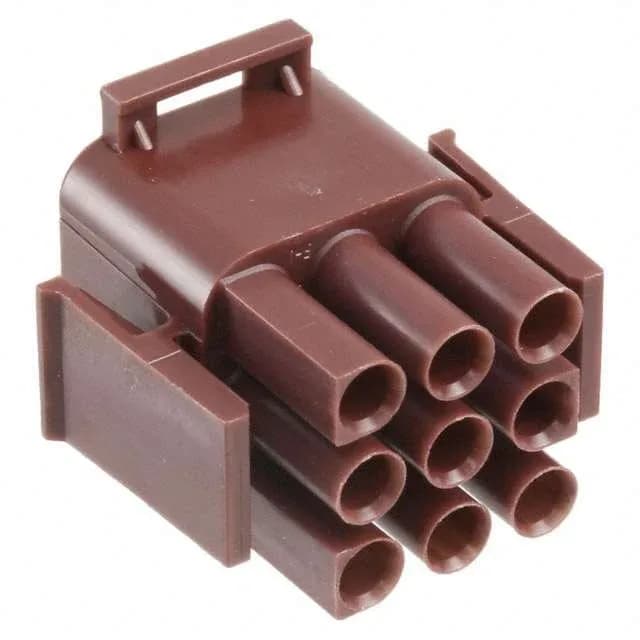

TE 1-480706-1 Universal MATE-N-LOK Plug Housing, 9 Pos Brown

MPN1-480706-1
Active

TE Connectivity Universal MATE-N-LOK plug housing, 1-480706-1, 9 positions, 3 rows, 0.250" (6.35mm) row spacing, free-hanging in-line, latch lock, crimp termination, brown nylon, contacts not included.

$0.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-480706-1 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorBrown
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Row spacing0.250\" (6.35mm)
Rows3
Contact terminationCrimp
Positions9

Product details

At 0.250" (6.35mm) row spacing, this housing accepts either male or female crimp contacts — the same cavity works for both, which simplifies inventory if you stock one terminal type for the whole harness.

Plan the terminal line item at the same time as the housing to avoid a partial-kit delay on the assembly bench.

The 1-1644055-3 is a 6-position, 2-row plug in the same Universal MATE-N-LOK family, also free-hanging with latch lock and crimp termination. The 1-480706-1 adds a third row and three more positions — 9 vs 6 — at the same 0.250" row spacing. If your circuit count is 6 or fewer, the 2-row housing saves board space and cavity waste; at 7 to 9 circuits, the 3-row 1-480706-1 is the correct fit.

Frequently asked questions

What contacts are compatible with TE 1-480706-1 housing?

The 1-480706-1 accepts Universal MATE-N-LOK male or female crimp contacts — the same cavity works for either gender. Contacts are not included and must be ordered separately; select the terminal that matches your wire gauge.

Is 1-480706-1 RoHS compliant?

Yes, 1-480706-1 is RoHS3 compliant per TE's listing.
