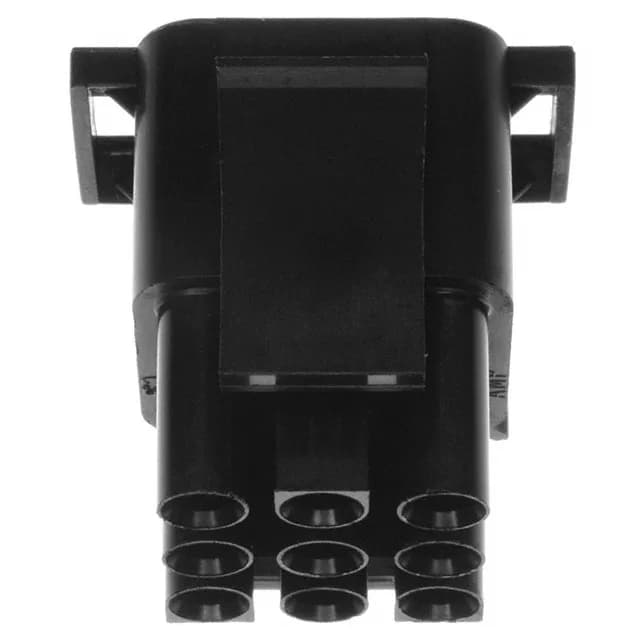

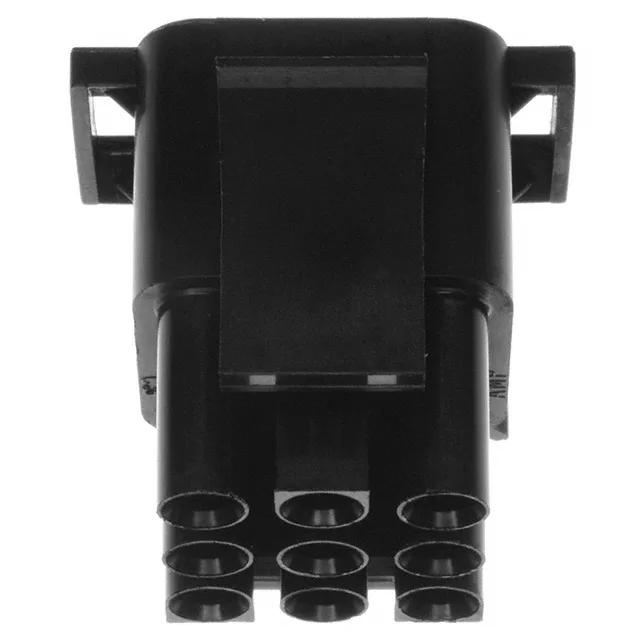

TE Connectivity Universal MATE-N-LOK 1-480706-9, 9-position plug housing, 3 rows, 0.250" (6.35mm) row spacing, free-hanging, latch lock, crimp termination, black, RoHS.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Package | Bulk |
| Row spacing | 0.250\" (6.35mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 9 |
It accepts either male or female crimp contacts, so you can wire it as a plug or a receptacle depending on the header you're mating to. The black nylon body handles -55°C to 105°C, typical for under-hood and industrial cabinet environments.
Use the TE Universal MATE-N-LOK pin or socket contacts (both male and female fit this housing). For a 3-row, 9-position layout, the contact cavities are arranged three per row.
The housing accepts TE Universal MATE-N-LOK male or female crimp contacts — both types fit the same cavity. Contacts are ordered separately.
Yes, 1-480706-9 is RoHS compliant.
