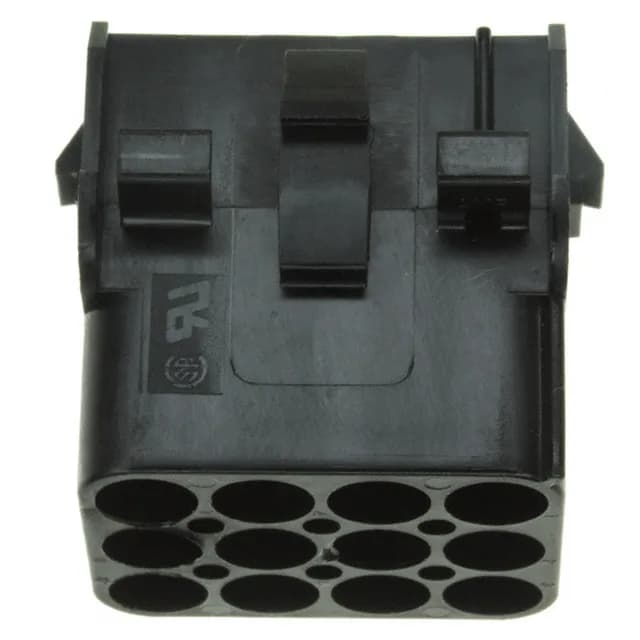

TE Connectivity Universal MATE-N-LOK receptacle housing, 1-480709-9, 12 positions, 3 rows, 0.250" (6.35 mm) row spacing, panel mount snap-in, locking ramp, black PA66, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male or Female |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Package | Bulk |
| Row spacing | 0.250\" (6.35mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 12 |
The 0.250" (6.35 mm) row spacing gives each of the three rows enough room to fit larger-gauge wire without the terminals crowding each other in the cavity. That spacing also matches the standard Universal MATE-N-LOK pin header pattern, so the housing mates cleanly with the corresponding plug or header without side-to-side play.
No, contacts are not included with this housing. You order the matching male or female crimp terminals separately for the wire gauge your harness requires.
The row spacing is 0.250" (6.35 mm) across the three rows.
