Housing only – contacts ordered separately
The 1-485893-0: The housing accepts 22-32 AWG wire with an insulation diameter range of 0.025" to 0.056" (0.64mm to 1.42mm), and also works with FFC of 0.05-0.13mm thickness.

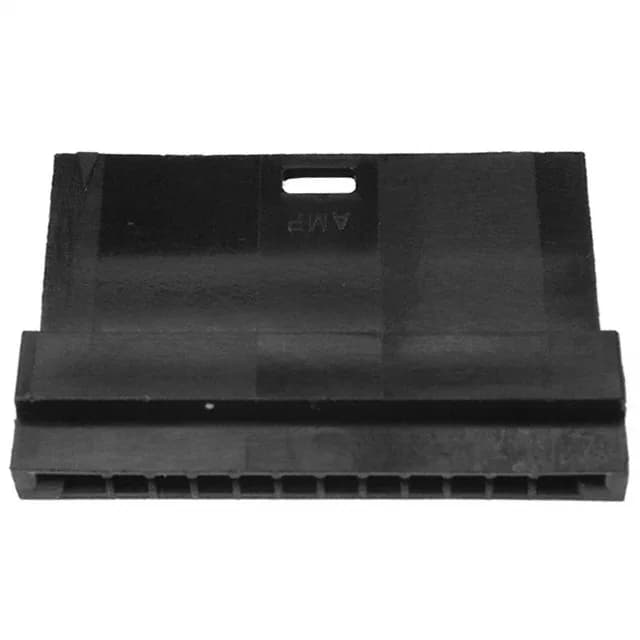

1-485893-0 TE Connectivity FFC Pin Housing, 12 Pos, 2.54mm
MPN1-485893-0
Active
TE Connectivity AMP Connectors, FFC / FPC Housing, 12 positions, 0.100" (2.54mm) pitch, single row, housing for male contacts, 1.5 A, 300 V, -65°C to 105°C, UL94 V-0, black thermoplastic, detent lock, bulk pack.
$2.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-32 AWG |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Insulation diameter | 0.025\" ~ 0.056\" (0.64mm ~ 1.42mm) |
| Positions | 12 |
Product details
Frequently asked questions
What mating contacts are required for 1-485893-0?
This housing accepts male crimp contacts for 22-32 AWG wire. The housing also accepts FFC of 0.05-0.13mm thickness.
Does 1-485893-0 work with 2.54mm FFC cable?
The housing accepts FFC thickness of 0.05-0.13mm.
