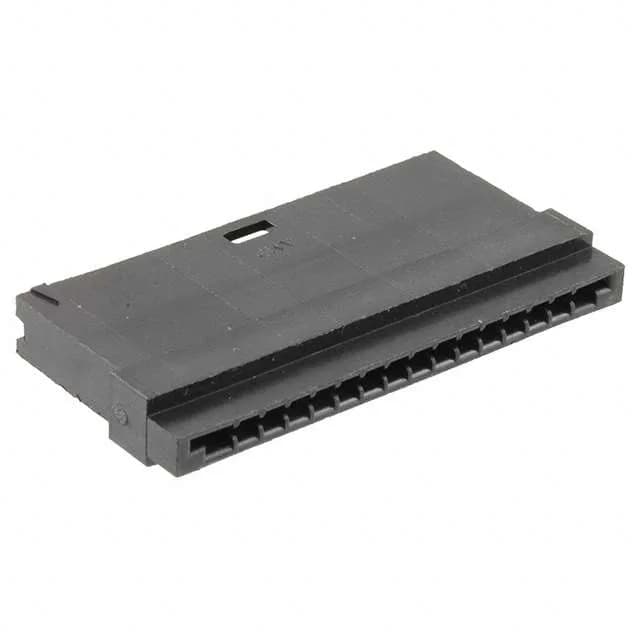

TE Connectivity AMP, 1-485893-4, FFC pin housing, 16 positions, 0.100" (2.54mm) pitch, single row, housing for male contacts, 1.5 A, 300 V, UL94 V-0, black thermoplastic, detent lock, active production.
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-32 AWG |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Insulation diameter | 0.025\" ~ 0.056\" (0.64mm ~ 1.42mm) |
| Positions | 16 |
The 1-485893-4: This is a 16-position, single-row housing for male FFC or discrete-wire contacts. The pitch is 0.100" (2.54mm), a legacy spacing that matches older ribbon-cable and discrete-wire systems. The housing itself carries no contacts — those are ordered separately per the note on the datasheet.
Accepts 22-32 AWG wire, with an insulation diameter range of 0.025" to 0.056" (0.64mm to 1.42mm). The FFC or FCB thickness it takes is 0.05-0.13mm.
0.100" (2.54mm). That's a standard legacy pitch, common in older ribbon-cable and discrete-wire systems.
