15-position FFC housing, 1.27 mm pitch
The 1-487545-2 is the 15-position member of TE Connectivity's AMPMODU System 50 FFC housing line, accepting 0.05-0.08mm thick flat flex cable.
Compliance and temperature range
Contacts are ordered separately.

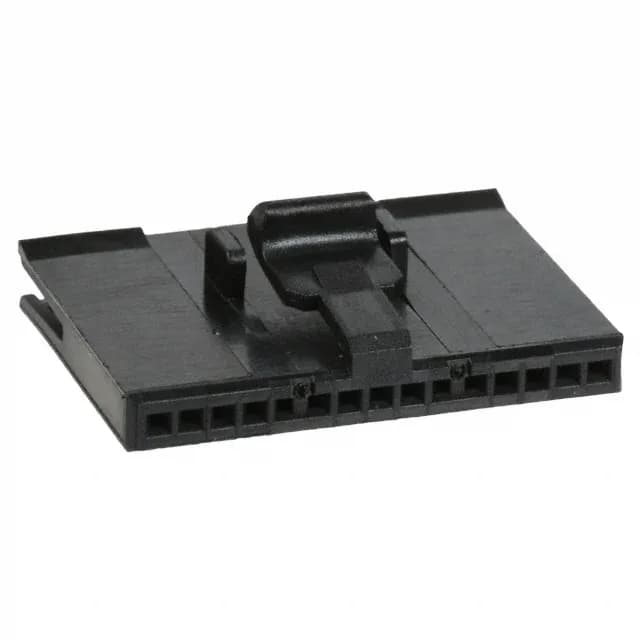

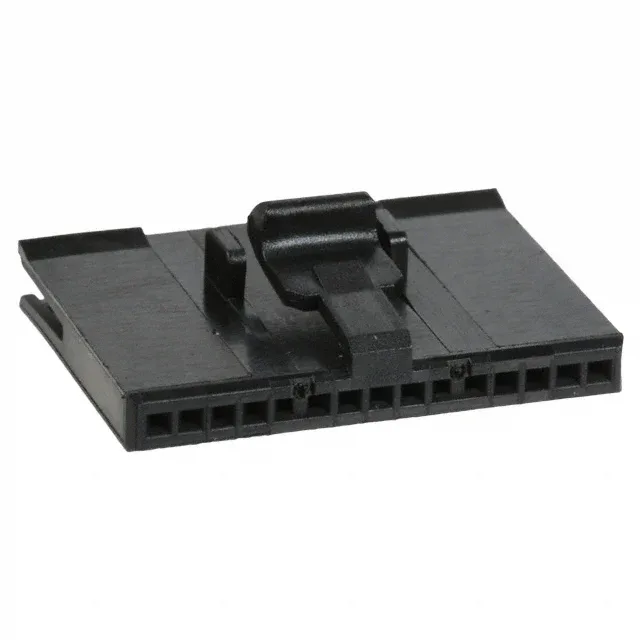

1-487545-2 TE AMPMODU System 50 FFC Housing 15 Pos 1.27mm
MPN1-487545-2
Active
TE Connectivity AMPMODU System 50 FFC housing, order code 1-487545-2, 15 positions, single row, 0.050" (1.27mm) pitch, 1.5 A, 100 V, latch lock, polyester housing, black, bulk.
$2.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 100 V |
| Current rating | 1.5 A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Housing material | Polyester |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.050\" (1.27mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.08mm |
| Positions | 15 |
Product details
Frequently asked questions
What does 'Contacts Not Included' mean for this housing?
The 1-487545-2 is a housing only — mating contacts must be ordered separately. The housing accepts FFC with a thickness of 0.05-0.08mm.
