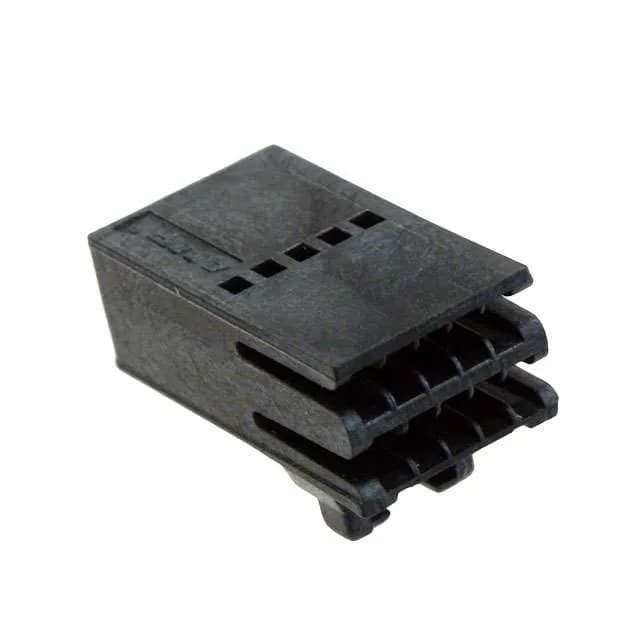

TE Connectivity AMP Connectors AMPMODU System 50, FFC receptacle housing, 1-487937-0, 10 positions, dual-row, 0.050" (1.27mm) pitch, latch lock, 1.5 A, 100 V, UL94 V-0, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 100 V |
| Current rating | 1.5 A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Housing material | Polyester |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.050\" (1.27mm) |
| Package | Bulk |
| Rows | 2 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.08mm |
| Positions | 10 |
The 1-487937-0: The 0.050" (1.27mm) pitch and dual-row layout fit standard FFC ribbon with thickness 0.05-0.08mm.
The 16-position sibling 1-487937-6 shares the same pitch, current, and locking feature — the only difference is circuit count.
Active lifecycle status.
No. The housing ships without contacts — they must be ordered separately. The note on this part is Contacts Not Included.
0.050" (1.27mm) pitch, dual-row. Accepts FFC with thickness 0.05-0.08mm.
The 16-position sibling 1-487937-6 is the closest match — same pitch, current rating, locking feature, and housing material. The only parametric difference is circuit count: 10 vs 16 positions.
Yes, ROHS3 Compliant.
