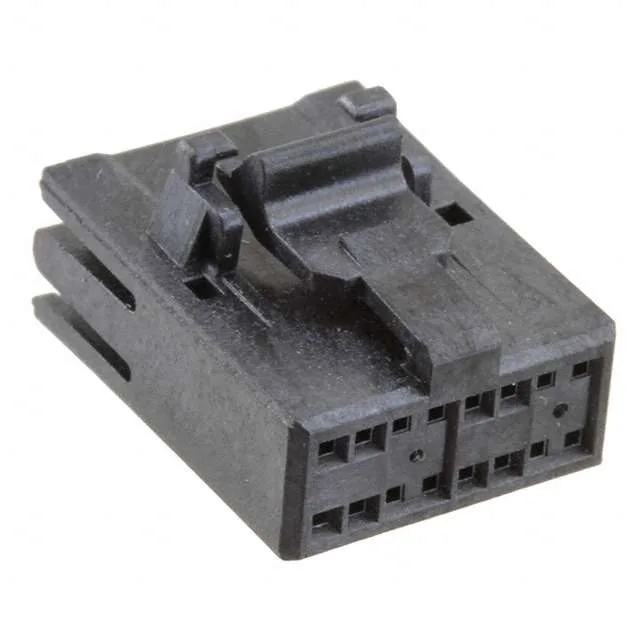

The 1-487937-6: This is a 16-position, dual-row FFC receptacle housing from the AMPMODU System 50 series. It accepts 0.05-0.08mm thick flat flex cable and mates with the corresponding AMPMODU System 50 header. The 1.27mm pitch sets the board footprint and the per-contact current ceiling — at 1.5 A the temperature rise stays within the polyester housing's limits. Rated for 100 V and -55°C to 105°C, this housing suits signal-level interconnects in industrial control, telecom, and test equipment where the FFC carries low-power data or control lines.
Wiring and termination note
The housing accepts FFC thickness of 0.05-0.08mm. The dual-row layout with 1.27mm pitch means the board-side footprint is compact — confirm the header pitch and position count match before committing the BOM line.
