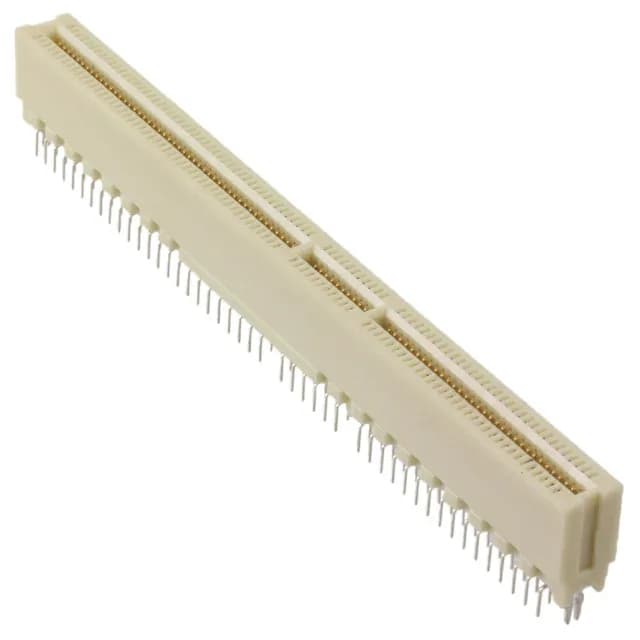

TE 1-5145169-2 Standard Edge .050 PCI Card Edge Connector

MPN1-5145169-2
Active

TE Connectivity Standard Edge.050 female card edge connector, 184 positions, 0.050" (1.27mm) pitch, dual readout, PCI 5V 64 Bit, through-hole staggered solder, gold 30.0µin, board locks, natural thermoplastic.

$5.7300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5145169-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesStandard Edge .050
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5145169-2 specifications
ParameterValue
SeriesStandard Edge .050
Card typePCI 5V 64 Bit
MountingThrough Hole
ColorNatural
Contact materialPhosphor Bronze
Material - insulationThermoplastic
Pitch0.050\" (1.27mm)
GenderFemale
PackageBulk
FeaturesBoard Lock
Read outDual
TerminationSolder, Staggered
Card thickness0.062\" (1.57mm)
Contact finishGold
Rows2
Positions184
Contact finish thickness30.0µin (0.76µm)
Number of positions (Bay, row)49; 11; 32

Product details

PCI 5V 64-Bit Card Edge Connector — 184 Positions at 0.050" Pitch

The TE Connectivity 1-5145169-2 is a 184-position female card edge connector from the Standard Edge.050 series, designed specifically for PCI 5V 64-bit bus slots. The 0.050" (1.27mm) pitch packs 184 contacts across a dual-row readout, matching the edge finger layout of a standard PCI 5V 64-bit add-in card.

What the 184 Positions Mean for Your BOM

The 184-position count is specific to the PCI 5V 64-bit slot — it is not a generic 0.050" pitch edge connector that fits any card. The dual readout is split into three bays: 49, 11, and 32 positions per row.

Frequently asked questions

Is 1-5145169-2 compatible with PCI-X?

No. The 1-5145169-2 is keyed for PCI 5V 64-bit slots. PCI-X uses a different keying position and will not mate with this connector.
