TE Connectivity AMP Connectors 1-51864-3

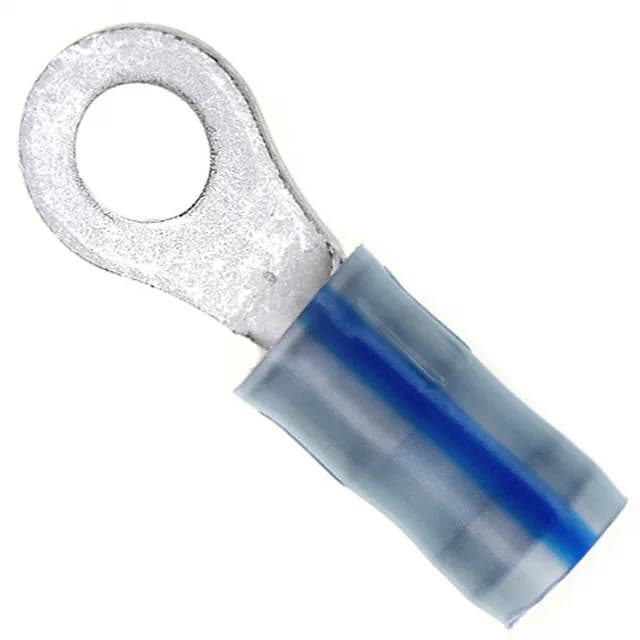

TE Connectivity PIDG 1-51864-3 Ring Terminal, 16 AWG

MPN 1-51864-3
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 1-51864-3, 16 AWG, #10 stud size, circular, insulated, tin-plated copper, crimp termination, free hanging, 0.031" (0.79mm) thickness.

$1.0800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-51864-3 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16 AWG
ColorBlue, Blue Stripe
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesInsulation Restriction
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.906\" (23.01mm)
Insulation diameter0.063\" ~ 0.130\" (1.60mm ~ 3.30mm)

Product details

PIDG ring terminal for 16 AWG, #10 stud

The 1-51864-3: The tin-plated copper contact is 0.031" (0.79mm) thick, insulated with blue/blue-stripe polyamide (nylon), and crimp-terminated for free-hanging inline use.

Wire gauge siblings in the PIDG line

Within the PIDG series, the 1-51864-3 (16 AWG) sits between the 2-36153-9 (18 AWG) and the 1-51864-5 (14 AWG) — all share the #10 stud size, 0.312" (7.92mm) outer width, and tin-plated copper contact.

MPN
1-51864-3
