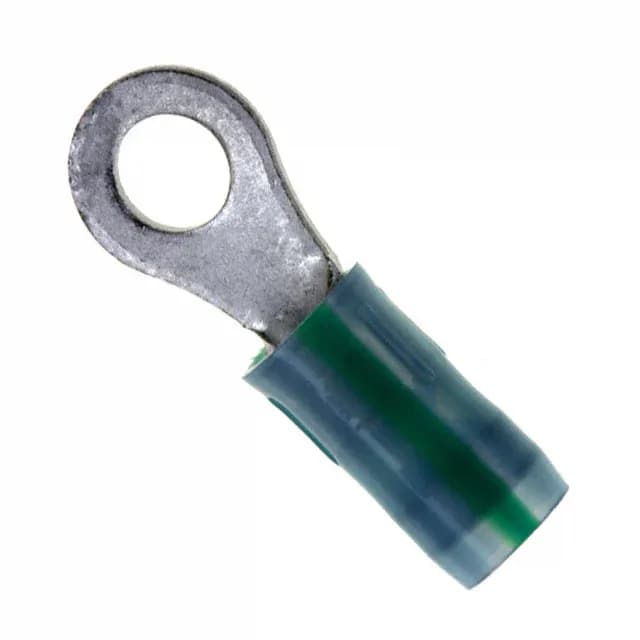

TE Connectivity AMP Connectors PIDG ring terminal, order code 1-51864-5, 14 AWG, #10 stud size, circular terminal type, tin-plated copper contact, insulated, 0.031" (0.79mm) thickness, crimp termination, free hanging in-line.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14 AWG |
| Color | Blue, Green Stripe |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.906\" (23.01mm) |
| Insulation diameter | 0.078\" ~ 0.130\" (1.98mm ~ 3.30mm) |
The 1-51864-5: Tin-plated copper contact, 0.031" (0.79mm) thickness, crimp termination, free hanging in-line mounting.
The 1-51864-5 shares the same #10 stud size, 0.312" (7.92mm) outer width, and 0.906" (23.01mm) overall length as the 1-51864-3 (16 AWG) and the 51864-9 (14 AWG, bulk packaging).
Request a quote for current pricing and lead time.
The stud size, outer width, and overall length are identical.
