TE Connectivity AMP Connectors 1-52042-0 — Ring Terminals

TE Connectivity 1-52042-0 Ring Terminal, 6 AWG, #10 Stud

MPN1-52042-0
Active

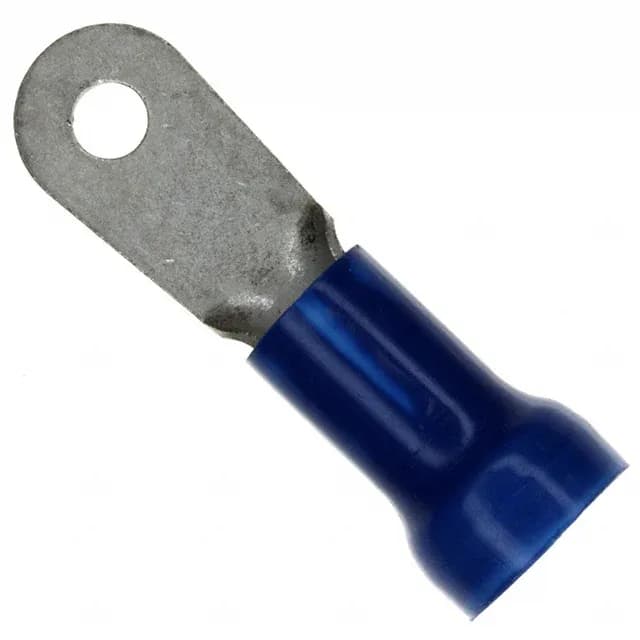

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 1-52042-0, 6 AWG, #10 stud, circular, tin-plated copper, insulated, 0.045" (1.14mm) thickness, crimp termination, free hanging.

$1.8500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-52042-0 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge6 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.500\" (12.70mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.045\" (1.14mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall1.844\" (46.84mm)
Insulation diameter0.436\" (11.07mm)

Product details

Plasti-Grip ring terminal for 6 AWG

The 1-52042-0 is a TE Connectivity Plasti-Grip ring terminal for 6 AWG wire, terminated to a #10 stud with a crimp connection. The tin-plated copper contact and PVC insulation suit power-distribution and battery-cable terminations where a secure, insulated ring lug is required.

Serrated barrel and insulation grip

The serrated inner barrel bites into the stripped conductor during crimp to improve pull-out resistance and electrical contact. The PVC insulation sleeve covers the crimp barrel and a portion of the wire jacket; the insulation diameter acceptance is 0.436" (11.07 mm).

ROHS3 compliant per TE Connectivity's current material declaration.

Frequently asked questions

What wire gauge and stud size does the 1-52042-0 accept?

The 1-52042-0 accepts 6 AWG wire and fits a #10 stud. The terminal is a circular ring type with a crimp termination.

What compliance documentation is available for the 1-52042-0?

TE Connectivity provides ROHS3 compliance for the 1-52042-0. Additional documentation such as REACH or UL may be available from the manufacturer upon request.
