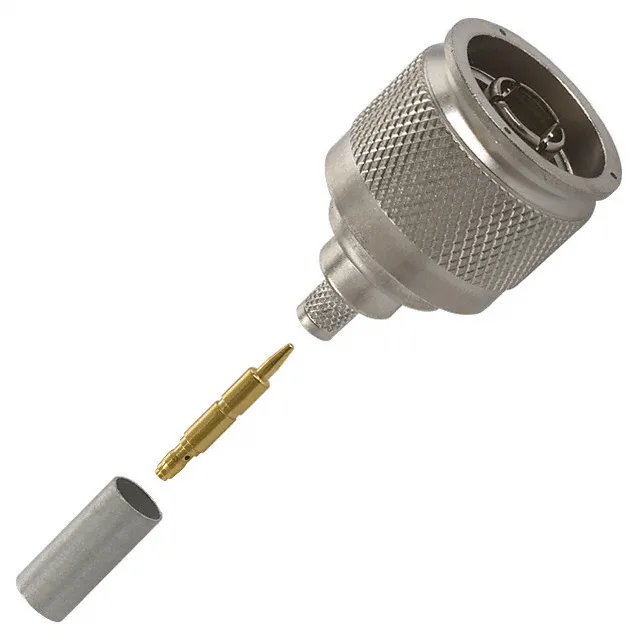

1-5225661-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1-5225661-2 N Type Plug, 50 Ohm, 11 GHz

MPN1-5225661-2
Obsolete

TE Connectivity, N Type, Plug, Male Pin, 50 Ohms, 11 GHz, Crimp Termination, Free Hanging, 1 Port, Bulk

$6.9100Ref. price · indicative, final on quote
1-5225661-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-5225661-2 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Cable groupRG-58A, 58C
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

It is a 50 Ohm connector rated to 11 GHz with a threaded fastening mechanism and a nickel-plated brass body.

Rated for 50 Ohm systems up to 11 GHz, the connector uses a PTFE dielectric and gold-plated centre contact for stable RF performance across the band. The crimp termination for both centre contact and shield is sized for RG-58A cable groups — the ferrule compresses over the braid and the centre contact crimps onto the signal conductor. The threaded coupling nut provides vibration-resistant mating for field-installed cable assemblies.

Mechanical and Environmental Ratings

The silver-coloured housing uses a nickel finish on the brass body for corrosion resistance.

Frequently asked questions

What is the replacement for 1-5225661-2?

No official replacement or cross-reference order code is recorded on the manufacturer's lifecycle record. The connector is sourced to order through independent distribution against an RFQ.

What cable does the 1-5225661-2 fit?

The 1-5225661-2 is designed for RG-58A and RG-58C coaxial cable groups, with crimp termination for both the centre contact and shield.

Does the 1-5225661-2 come with a ferrule and contact?

Yes, the kit includes three pieces: one connector body, one gold-plated brass centre contact, and one ferrule for shield termination.

How many mating cycles does the 1-5225661-2 have?

The connector is rated for 500 mating cycles.
