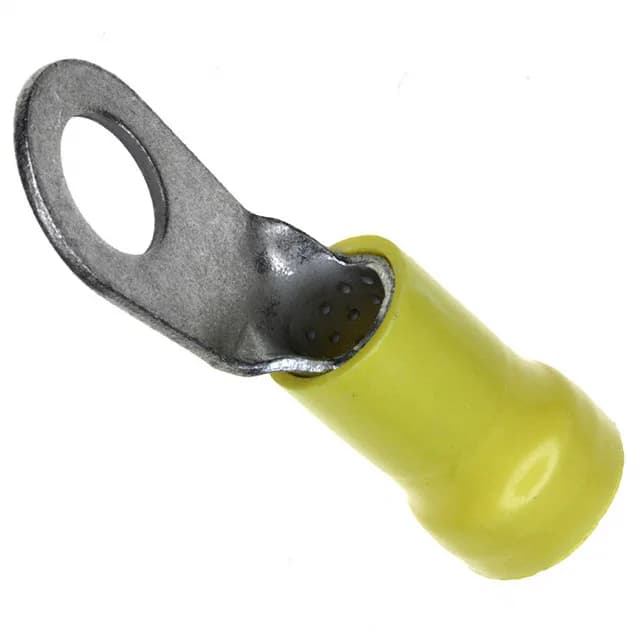

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 1-52266-0, 4 AWG, 3/8 stud size, yellow PVC insulation, tin-plated copper contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 4 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.679\" (17.25mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 2.014\" (51.16mm) |
| Insulation diameter | 0.450\" (11.43mm) |
The 1-52266-0 is the 4 AWG, 3/8-stud member of TE's Plasti-Grip ring terminal line, insulated in yellow PVC. The tin-plated copper ring accepts a crimp termination and is rated for free-hanging (in-line) installation.
The 1-52266-0 is ROHS3 compliant.
Yes, the 1-52266-0 and 52266-4 share the same stud size (3/8), wire gauge (4 AWG), insulation colour (yellow), and overall dimensions (2.014" length, 0.679" width). The only difference is packaging: 1-52266-0 is Tape & Reel / Cut Tape; 52266-4 is Bulk.
