Pin diameter acceptance and contact construction

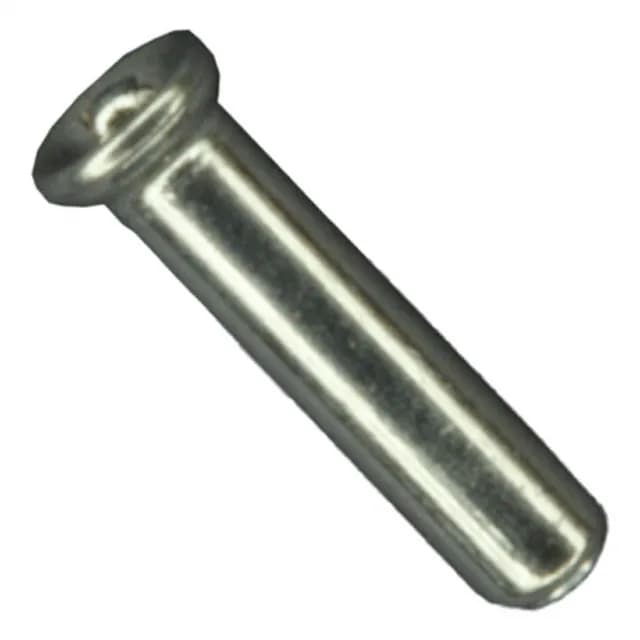

The 1-5332095-9: This PCB pin socket accepts pin diameters from 0.013" to 0.020" (0.33mm to 0.51mm), making it a fit for standard component leads and header pins within that range.
Solder termination and board mounting
Termination is solder, with a mounting hole diameter of 0.041" (1.04mm) and a flange diameter of 0.059" (1.50mm) — the flange sits flush against the board surface, and the knockout bottom feature allows the socket to be pressed into a panel or board for alignment before soldering. Overall length is 0.178" (4.52mm) with a socket depth of 0.165" (4.19mm), leaving a short tail for solder fillet.
