TE Connectivity AMP Connectors 1-5406010-2 — Modular Jacks (RJ)

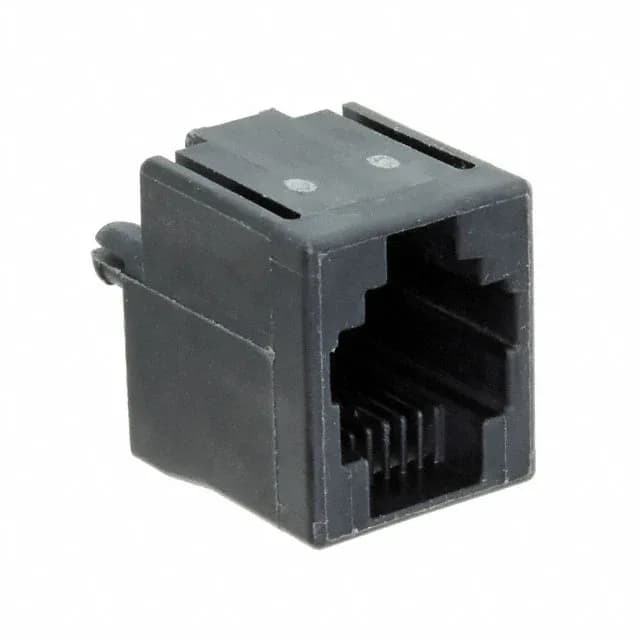

1-5406010-2 MT-RJ Modular Jack, 6p6c R/A Unshielded

MPN1-5406010-2
Active

TE Connectivity MT-RJ modular jack, 1-5406010-2, 6p6c (RJ11/RJ12/RJ14/RJ25), right-angle, through-hole, unshielded, gold contacts, bulk packaging.

$2.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMT-RJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5406010-2 specifications
ParameterValue
SeriesMT-RJ
MountingThrough Hole
Connector typeJack
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon
PackageBulk
FeaturesBoard Guide
ShieldingUnshielded
Orientation90° Angle (Right)
TerminationSolder
Tab directionUp
Contact finishGold
Rows1
Number of ports1
Number of positions (Contacts)6p6c (RJ11, RJ12, RJ14, RJ25)

Product details

The TE Connectivity 1-5406010-2 is a 6p6c modular jack from the MT-RJ series, configured as a right-angle, through-hole mount component. The unshielded construction keeps the part cost down for environments where EMI containment is handled at the system level.

Position Count and Wiring Compatibility

This 6p6c jack supports RJ11, RJ12, RJ14, and RJ25 wiring configurations. The single-row layout keeps the PCB footprint narrow.

Mounting and Orientation for Board Layout

Through-hole solder termination provides mechanical strength against insertion and withdrawal forces — no secondary bracket is needed for typical desk equipment.

The bulk packaging suits volume builds where tape-and-reel feed is not required.

Frequently asked questions

Is the 1-5406010-2 shielded or unshielded?

The 1-5406010-2 is unshielded, so it does not include a metal shell or EMI gasket. Use it in equipment where the system chassis or enclosure provides the shielding path, or where radiated emissions are not a concern.
