TE Connectivity AMP Connectors 1-55323-0 — Terminal Blocks

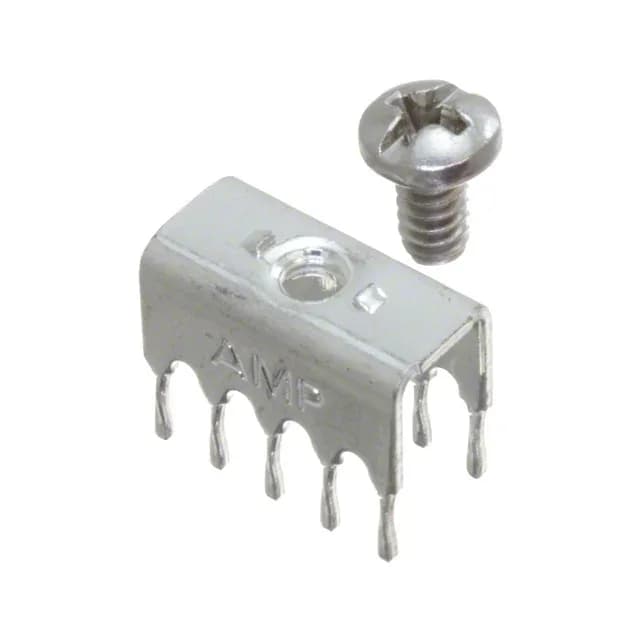

TE Connectivity 1-55323-0 Screw Terminal Power Tap, 10 Pin

MPN1-55323-0
Active

TE Connectivity 55323 series screw terminal power tap, 10 pin, 6-32 screw size, through-hole solder termination, Tin-Lead contact finish, Bulk package.

$3.3600Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-55323-0 specifications
ParameterValue
MountingThrough Hole
Terminal typeScrew Terminal, Power Tap
Contact materialCopper
PackageBulk
Screw size6-32
TerminationSolder
Contact finishTin-Lead
Pin count10

Product details

What This PCB-Mount Power Tap Does

The 1-55323-0: Each of the 10 positions accepts a 6-32 machine screw, making this a fixed distribution point on the board — you land ring-tongue or spade terminals from power wires directly onto the screw posts, then solder the pins to the PCB.

Through-hole solder termination — the 10 pins insert into plated holes and are wave-soldered on the opposite side. The 6-32 screw tap is the wire-side interface: use a 6-32 UNC screw (not included) to clamp a ring or fork terminal against the pad. The screw size is standard hardware, easy to source. The Bulk package means these ship loose in a bag or tube, not on a reel.

Frequently asked questions

What screw size does the 1-55323-0 use?

The screw terminal accepts a 6-32 UNC machine screw. This is a standard US thread size — readily available from any fastener supplier.

Is the 1-55323-0 RoHS compliant?

No. The Tin-Lead contact finish makes this part RoHS non-compliant. If your assembly requires RoHS compliance, this variant will not pass inspection.
