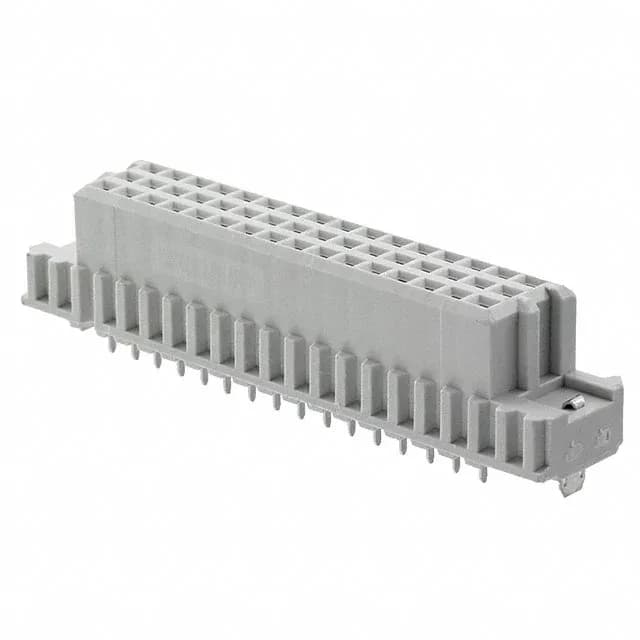

TE Connectivity Eurocard series, Receptacle, Female Sockets, 48 positions, 3 rows, 0.100" (2.54mm) pitch, Style C/2 (1/2 C), Through Hole, Solder termination, Board Lock.
| Parameter | Value |
|---|---|
| Series | Eurocard |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Operating temperature | -55°C ~ 105°C |
| Material - insulation | Polymer Thermoplastic, Glass Filled |
| Pitch | 0.100\" (2.54mm) |
| Style | C/2 (1/2 C) |
| Package | Tube |
| Features | Board Lock |
| Termination | Solder |
| Level, class | 2 |
| Rows | 3 |
| Positions | 48 |
The TE Connectivity 1-5536397-5 is a 48-position receptacle from the Eurocard series, conforming to DIN 41612. The style C/2 (1/2 C) keying variant ensures it mates only with the corresponding C/2 male header, preventing mis-insertion in multi-slot systems.
The glass-filled thermoplastic insulator gives the housing dimensional stability through the solder process.
