25-Position D-Sub Receptacle, Solder Termination

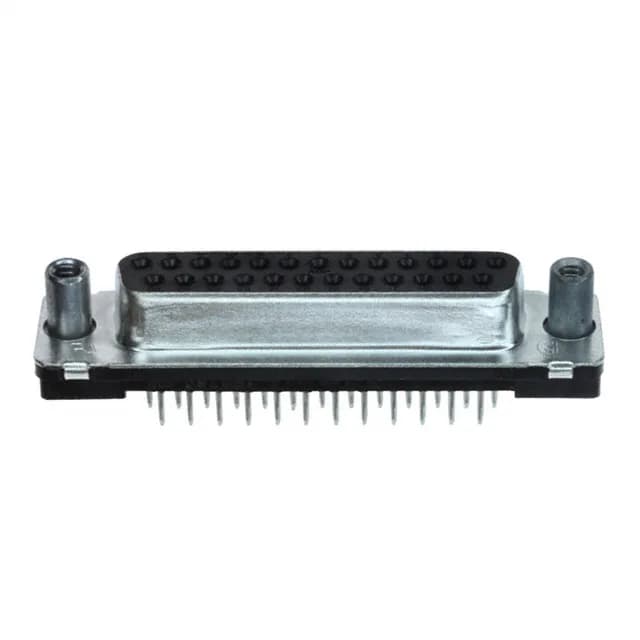

The TE Connectivity 1-5745967-6 is a 25-position D-sub receptacle from the AMPLIMITE HD-20 series, designed for standard-density board-to-cable signal interconnects. It carries 25 female sockets in two rows, terminated via solder cups to the PCB through hole. The 6A per-contact rating and 125V voltage limit suit it for parallel-port, industrial I/O, and serial data interfaces where the signal count matches the DB-25 shell size (layout 3). The steel shell with tin plating gives the EMI shielding the D-sub form factor is known for, and the mating-side female screwlock (4-40) keeps the pair cinched tight against vibration. The black colour is the default for the HD-20 series.
6A per Contact — What It Means for Signal vs Power Duty
For signal-level circuits (RS-232, parallel data, low-current sensor lines) the 6A headroom is generous; for a power rail, derate per the manufacturer's curve above 105°C. The 30 µ" gold plating supports 200+ mating cycles without exposing base metal — a field-service connector sees more insertions than a permanent harness. Compared to a standard-density D-sub with tin plating (typically rated 3A–5A), the gold-contact version holds its contact resistance stable over more cycles.
