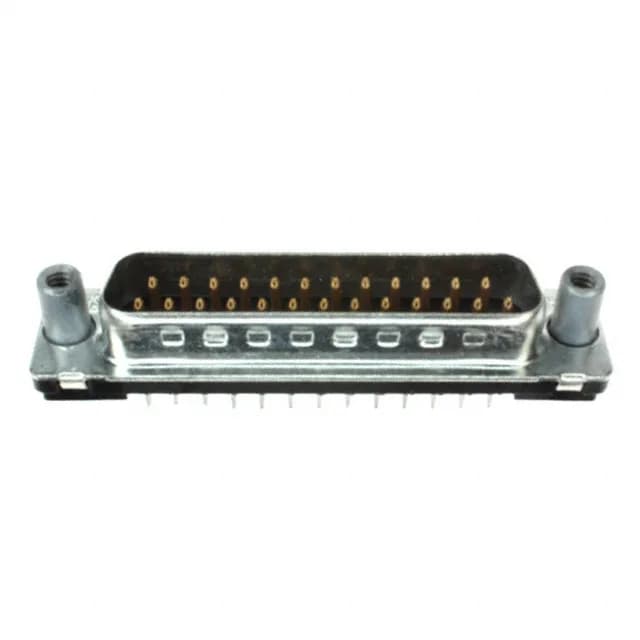

DB25 Male Plug, Vertical Solder — 25 Circuits, 6 A per Contact
The TE Connectivity 1-5745968-3 is a 25-position, 2-row D-sub plug from the AMPLIMITE HD-20 series, configured as a male pin connector with vertical solder termination for through-hole mounting. It uses the standard DB25 shell layout (shell size 3, DB, B), which means it mates with any standard DB25 receptacle — the pinout follows the industry-standard DB25 assignment, with 25 signal contacts arranged in two rows.
Mating and Termination — Standard DB25 Interface
The mating-side female screwlock (4-40) is the standard locking mechanism — the male counterpart on the receptacle side must have 4-40 threaded inserts or jackscrews. For a complete mated pair, pair this plug with a TE AMPLIMITE HD-20 DB25 receptacle such as the 1-5745968-4 (female, 25-position, vertical solder).
